90* Mjic-Fem Metric Soft Seal

Description & Features

Designed for robust industrial applications, this 90° elbow fitting provides a reliable connection between JIC and DIN tube systems. Constructed from durable steel, the fitting features a male JIC thread of 1-5/8 - 12 UN on Side 1 and a female DIN tube connection M45 X 2.0 on Side 2. The Adaptall 90* Mjic-Fem Metric Soft Seal ensures a secure fit with a soft seal for preventing leaks in high-pressure environments.

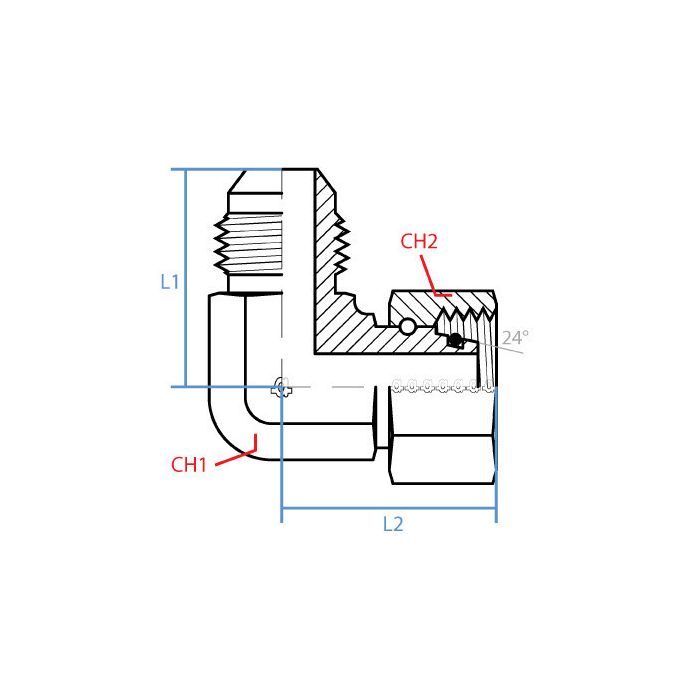

With dimensions including a Ch1 width of 41mm and a Ch2 width of 50mm, this elbow fitting accommodates precise installation needs. The L1 length of 51.5mm and L2 length of 52mm further contribute to its compatibility across various setups. Ideal for hydraulic systems requiring robust and leak-proof connections, this fitting delivers reliable performance, ensuring the integrity of your industrial systems.

SKU: 9199-20-L35-45

Supplier Part Number (MPN): 9199-20-L35-45

Specifications

CH1 Width 41mm	CH2 Width 50mm	L1 Length 51.5mm	L2 Length 52mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout M45 X 2.0	Side 2 Gender F	Side 2 Size L35	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-20-L35-45	Product Weight 1.54 lbs

Product Questions & Answers (3)

Question by: Kirk H on May 27, 2025, 11:03 AM

fitting's got a 1-1/4" JIC side and I need to tie into a DIN metric tube connection, is this the right elbow to be looking at?

Answer by: Customer Support on May 28, 2025, 2:20 PM

For that exact combination, yes. Side 1 is a 1-1/4" male JIC thread running 1-5/8 - 12 UN, and Side 2 is a female DIN tube connection at M45 X 2.0. The 90 degree elbow shape lets you change direction right at the junction, which comes in real handy when you're routing lines in tight quarters. The soft seal on the DIN side handles leak prevention in high-pressure hydraulic setups, so you're not relying on metal-to-metal contact alone to keep things tight.

Question by: Stan R on May 8, 2025, 3:54 PM

Will this fitting hold up in a hydraulic system that runs pretty hot?

Answer by: Customer Support on May 10, 2025, 1:28 PM

Designed for robust industrial applications, this fitting ensures a secure, leak-proof connection even in high-pressure environments, helping maintain the integrity of your hydraulic system.

Question by: Ronnie R on May 9, 2025, 7:23 PM

trying to hook a JIC hose up to a DIN tube port and need a 90, is this the right kind of adapter?

Answer by: Customer Support on May 10, 2025, 8:44 PM

For that setup, this fitting is a 90° elbow that adapts a male JIC end to a female DIN tube connection. Side 1 is male JIC, 1-5/8 - 12 UN (size 1-1/4 inch), and Side 2 is female DIN tube M45 x 2.0 (size L35) with a soft seal to help prevent leaks.
