90* Mjic-Fem Metric Soft Seal

Description & Features

Designed for precision and reliability, this 90° Elbow Adapter is constructed from durable steel, ensuring robust performance in demanding hydraulic applications. The adapter features a male JIC connection on Side 1 with a size of 1-1/4" (1-5/8 - 12 UN thread) and a female DIN tube connection on Side 2 with a size of S30 (M42 X 2.0 thread), making it suitable for seamless integration into existing systems.

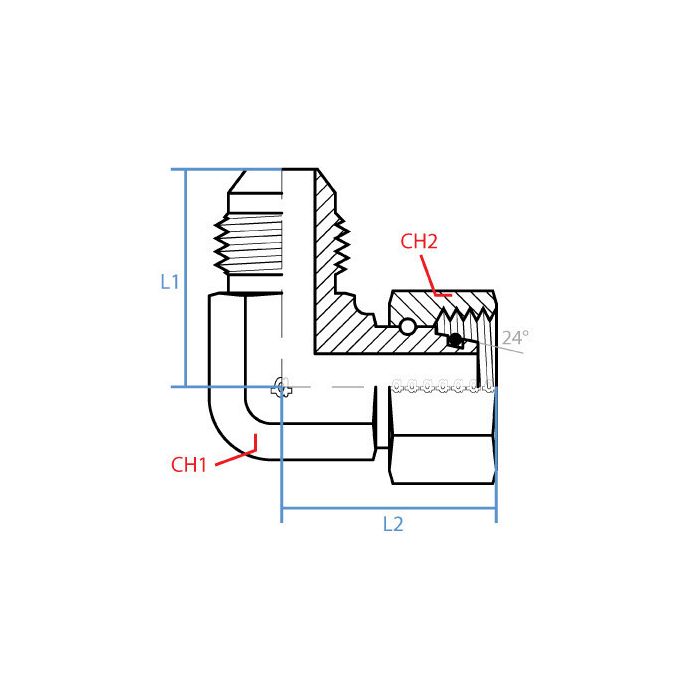

The adaptable design of the 90* Mjic-Fem Metric Soft Seal allows it to accommodate various hydraulic setups, providing flexibility and compatibility. With widths of 41mm and 50mm at Adaptall Ch1 and Ch2 respectively, and lengths of 54.2mm and 52.3mm at L1 and L2, this component is engineered for optimal fit and function. Ideal for industrial environments, it meets the rigorous standards expected in professional settings.

SKU: 9199-20-S30-42

Supplier Part Number (MPN): 9199-20-S30-42

Specifications

Brand adapt-all	Connection Size 1 1-1/4 in	Connection Size 2 S30	Connection Type Female Metric Swivel, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female Metric DIN Tube Swivel	Dimension Standards DIN 2353, SAE J514	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 41 mm, 50 mm	Material Steel	Material Construction Carbon Steel	Series 9199 Series	Thread Size 1-5/8-12, M42x2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
9199-04-S06-14	1/4 in	6 mm	M14x1.5 x 7/16-20
9199-06-S08-16	3/8 in	8 mm	9/16-18 x M16x1.5
9199-06-S10-18	3/8 in	10 mm	9/16-18 x M18x1.5
9199-08-S12-20	1/2 in	12 mm	M20x1.5 x 3/4-16
9199-10-S16-24	5/8 in	S16	7/8-14, M24x1.5
9199-12-S20-30	3/4 in	20 mm	M30x2 x 1-1/16-12
9199-16-S25-36	1 in	S25	1-5/16-12 x M36x2

Product Questions & Answers (1)

Question by: Curt C on May 13, 2025, 2:30 PM

got a line running 1-1/4 JIC male on one end and need to tie into a metric DIN tube port, S30 size with M42 x 2.0 thread, this elbow gonna work for that?

Answer by: Customer Support on May 14, 2025, 4:54 PM

That's what this fitting covers. One side is a 1-1/4" male JIC with a 1-5/8-12 UN thread, and the other is a female DIN tube connection sized S30 with M42 x 2.0 thread. The 90-degree elbow shape also gives you some routing flexibility if you're working in a tight spot or need to change direction coming off that port.
