90* Mjic-Fem Metric Soft Seal

Description & Features

Configured as a 90° elbow, this steel hydraulic adapter connects a 1-1/2" Male JIC fitting (1-7/8–12 UN thread) on one end to a Female DIN Tube port (M52 x 2.0) on the other, bridging JIC and metric soft seal connections in a single compact body. The elbow geometry suits installations where a straight adapter would require excessive bending or routing in tight-clearance environments.

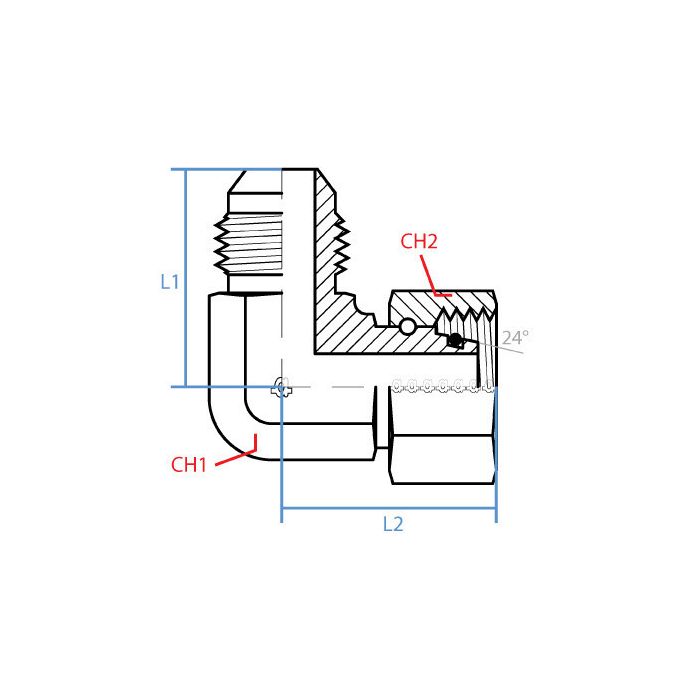

The 90* Mjic-Fem Metric Soft Seal is an Adaptall product, built from steel with a Ch1 wrench width of 48mm and Ch2 wrench width of 60mm. Overall assembled dimensions measure 56mm at L1 and 59mm at L2. The female metric side is sized at L42 with an M52 x 2.0 thread callout, making it compatible with standard DIN tube end connections commonly found in European and metric hydraulic circuits.

SKU: 9199-24-L42-52

Supplier Part Number (MPN): 9199-24-L42-52

Specifications

CH1 Width 48mm	CH2 Width 60mm	L1 Length 56mm	L2 Length 59mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout M52 X 2.0	Side 2 Gender F	Side 2 Size L42	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-24-L42-52	Product Weight 2.35 lbs

Product Questions & Answers (2)

Question by: Clint H on Mar 18, 2026, 6:35 PM

So this thing's got a bend in it, right? Just making sure I'm picturing it correct.

Answer by: Customer Support on Mar 20, 2026, 6:35 AM

That's right, this adapter is configured as a 90-degree elbow.

Question by: Dustin W on May 5, 2025, 11:46 AM

Got a tight spot on a piece of equipment where running a straight adapter just ain't gonna cut it, would this elbow work to tie in a 1-1/2" JIC male fitting to a metric DIN port without having to reroute a bunch of line?

Answer by: Customer Support on May 7, 2025, 6:25 AM

That's exactly the kind of situation this fitting is built for. One end is a 1-1/2" Male JIC with a 1-7/8-12 UN thread, and the other is a Female DIN Tube port running M52 x 2.0. The 90-degree elbow geometry lets you make that connection in confined spaces where a straight adapter would force you into awkward bends or extra line length. Overall it measures 56mm on L1 and 59mm on L2, so it stays pretty compact even with the elbow shape.
