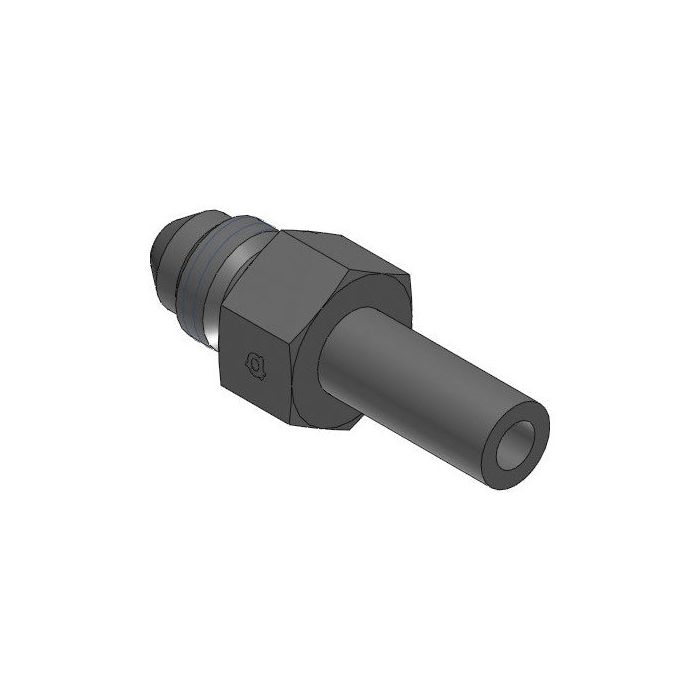

main product photo

Male Jic X Metric Standpipe

Ask A Question

Description & Features

Designed for connecting JIC and metric hydraulic lines, this straight steel adapter features a 7/16-20 UNF male JIC thread on one end and a 6mm female DIN Standpipe connection on the other. The Male JIC X Metric Standpipe from Adaptall measures 39.9mm in length with a 14mm wrench width, making it suited for compact installations where space around the fitting is limited.

Steel construction provides reliable durability in demanding hydraulic environments. The straight configuration keeps routing straightforward when transitioning between imperial JIC and metric standpipe connections within a hydraulic circuit.

SKU: 9200-04-06

Supplier Part Number (MPN): 9200-04-06

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
6 mm
Connection Type
Female Standpipe, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female DIN Standpipe
Dimension Standards
DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Dimensions
40 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
9200 Series
Thread Size
7/16-20

Product Questions & Answers (2)

Question by: Marvin P on Dec 2, 2025, 6:30 PM
fitting's only 39.9mm long, that gonna be enough thread engagement on both ends for a solid connection in a tight spot?
Answer by: Customer Support on Dec 4, 2025, 6:27 AM
At just under 40mm total length, there's enough room for proper thread engagement on both the 7/16-20 UNF JIC side and the 6mm DIN Standpipe end. The compact size is actually the point here. When you're working in a cramped hydraulic bay where longer adapters just won't fit, this one keeps the routing clean without sacrificing a secure connection on either side.
Question by: Neil H on Aug 18, 2025, 9:57 PM
Will this here fitting hold up alright if I'm usin' it on some heavy equipment that runs pretty much all day long?
Answer by: Customer Support on Aug 20, 2025, 6:34 AM
Steel construction ensures reliable durability, even in demanding hydraulic environments where equipment operates continuously. This fitting is designed to withstand the stresses of heavy equipment applications.
