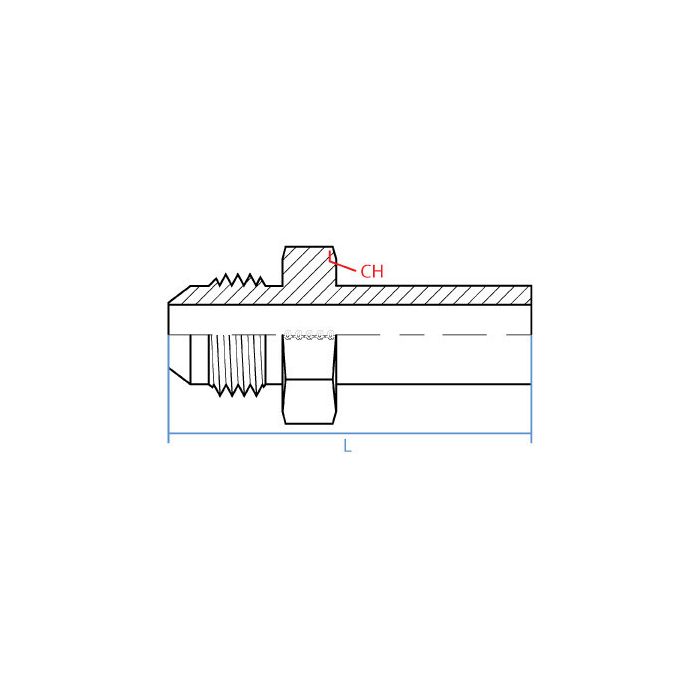

main product photo

Male Jic X Metric Standpipe

Ask A Question

Description & Features

Constructed from steel in a straight configuration, this Male JIC X Metric Standpipe provides a reliable transition between a 1/4" male JIC fitting (7/16-20 UNF thread) and a 10mm female DIN standpipe connection. With an overall length of 39.4mm and a 14mm wrench width, it is suited for compact hydraulic assemblies where thread type conversion is required between JIC and metric DIN standpipe interfaces.

Manufactured by Adaptall, this adapter is a practical solution for connecting hydraulic lines in mixed-standard systems where JIC and metric DIN components must interface directly. The straight geometry keeps routing straightforward in space-constrained installations.

SKU: 9200-04-10

Supplier Part Number (MPN): 9200-04-10

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
10 mm
Connection Type
Female Standpipe, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female DIN Standpipe
Dimension Standards
DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Dimensions
40.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
9200 Series
Thread Size
7/16-20

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Male Jic X Metric Standpipe

9200-04-06

1/4 in

6 mm

7/16-20

14 mm

Male Jic X Metric Standpipe

9200-04-08

1/4 in

8 mm

7/16-20

14 mm

Male Jic X Metric Standpipe

9200-06-10

3/8 in

10 mm

9/16-18

16 mm

Male Jic X Metric Standpipe

9200-06-12

3/8 in

12 mm

9/16-18

16 mm

Male Jic X Metric Standpipe

9200-08-12

1/2 in

12 mm

3/4-16

22 mm

Male Jic X Metric Standpipe

9200-08-14

1/2 in

14 mm

3/4-16

22 mm

Male Jic X Metric Standpipe

9200-08-15

1/2 in

15 mm

3/4-16

22 mm

Male Jic X Metric Standpipe

9200-08-16

1/2 in

S16

3/4-16

22 mm

Male Jic X Metric Standpipe

9200-10-16

5/8 in

S16

7/8-14

27 mm

Male Jic X Metric Standpipe

9200-10-20

5/8 in

20 mm

7/8-14

27 mm

Male Jic X Metric Standpipe

9200-12-16

3/4 in

S16

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-12-18

3/4 in

18 mm

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-12-20

3/4 in

20 mm

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-12-22

3/4 in

22 mm

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-12-25

3/4 in

S25

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-16-25

1 in

S25

1-5/16-12

35 mm

Male Jic X Metric Standpipe

9200-20-35

1-1/4 in

35 mm

1-5/8-12

Male Jic X Metric Standpipe

9200-20-38

1-1/4 in

38S

1-5/8-12

Male Jic X Metric Standpipe

9200-24-42

1-1/2 in

1-7/8-12

Product Questions & Answers (2)

Question by: Kent S on May 11, 2025, 3:45 PM
Would this fitting work to hook up a JIC line to a metric standpipe on a hydraulic cylinder?
Answer by: Customer Support on May 13, 2025, 6:43 AM
This male JIC to metric standpipe adapter is indeed designed for that purpose – connecting a 1/4" male JIC fitting (7/16-20 UNF thread) to a 10mm female DIN standpipe connection. It's a handy piece for adapting between those two thread types.
Question by: Lee R on Dec 18, 2025, 7:56 PM
Got a machine running a mix of JIC and metric DIN lines and need an adapter to tie them together, this the right piece for that?
Answer by: Customer Support on Dec 20, 2025, 6:41 AM
That's what this fitting handles. One end is a 1/4" male JIC with a 7/16-20 UNF thread, and the other connects to a 10mm female DIN standpipe. So if you've got a JIC line that needs to meet a metric DIN standpipe port, this bridges that gap in a straight, compact form. Steel construction, 39.4mm overall length, and a 14mm wrench width for installation.
