Male Jic X Metric Standpipe

Description & Features

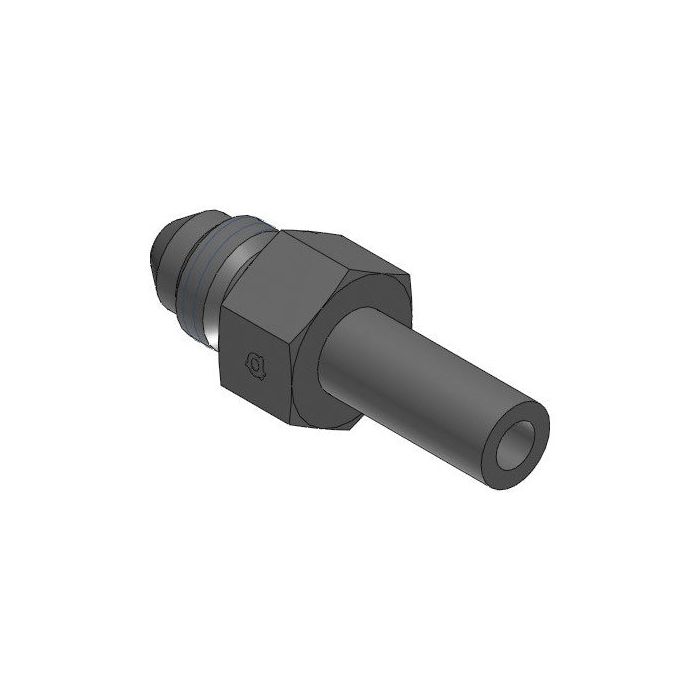

Constructed from high-quality steel, the Male Jic X Metric Standpipe by Adaptall America offers an efficient and secure connection solution for various technical applications. This straight connector is precisely designed with a 42.1mm length and a 16mm width, providing reliable performance in demanding environments.

Side 1 integrates a 9/16 - 18 UNF male Jic fitting, ideal for 3/8" size connections. On the other end, Side 2 features a 10mm female Din Standpipe fitting, ensuring versatile compatibility and seamless integration. Perfect for industrial setups and machinery, this adaptor ensures durability and robustness without the need for additional adjustments or calibrated components.

Built to meet stringent standards, this standpipe does not include additional elements such as check valves, ratcheting mechanisms, or electrical connectors, focusing solely on providing a straightforward and secure connection.

Supplier Part Number: 9200-06-10

Specifications

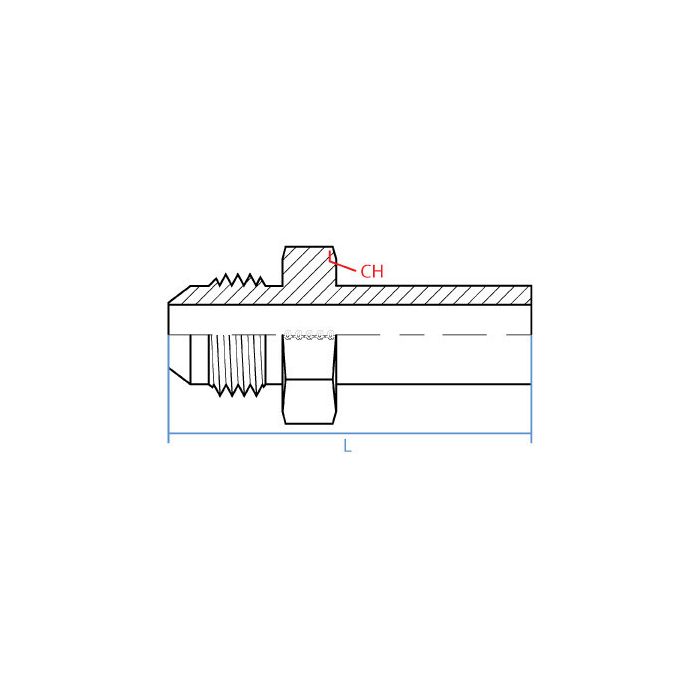

CH Width 16mm	L Length 42.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout 10mm	Side 2 Gender F	Side 2 Size 10mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-06-10	Product Weight 0.05 lbs

Product Questions & Answers (3)

Question by: Vince M on Oct 1, 2025, 9:50 AM

trying to hook a 3/8 jic hose to a 10mm din standpipe port, is this the right adapter?

Answer by: Customer Support on Oct 2, 2025, 8:52 PM

It’s a straight steel adaptor with a 9/16-18 UNF male JIC on one end (3/8 size) and a 10mm female DIN standpipe on the other, so it matches the connection types and sizes you described.

Question by: Connie G on May 25, 2025, 10:23 AM

Got a machine running 10mm DIN standpipe lines and need to tie into a JIC system. This the right piece for that?

Answer by: Customer Support on May 27, 2025, 9:17 AM

That's exactly the application this fitting covers. One end is a 9/16-18 UNF male JIC, which handles 3/8" JIC connections, and the other end is a 10mm female DIN standpipe. So if you're bridging those two systems, this is the adapter you want. It's straight, 42.1mm long, and made from steel, so it'll hold up in a working industrial setup without any fuss.

Question by: Todd P on Apr 26, 2025, 12:47 PM

Will this here standpipe work to connect somethin' with a 9/16-18 UNF male Jic to a 10mm female Din?

Answer by: Customer Support on Apr 28, 2025, 6:06 AM

That's what it's made for. This adaptor has a 9/16 - 18 UNF male Jic fitting on one side (good for 3/8" connections) and a 10mm female Din Standpipe fitting on the other.
