Male Jic X Metric Standpipe

Description & Features

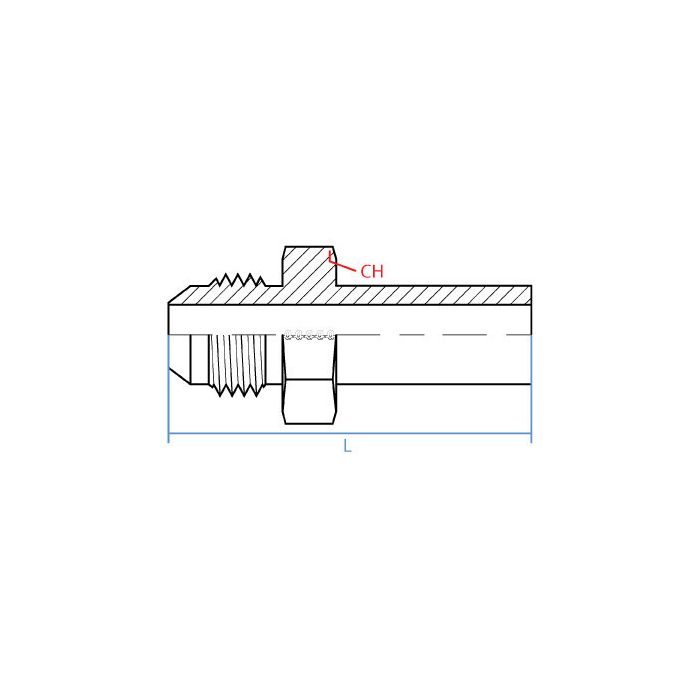

Constructed from durable steel, the Male JIC X Metric Standpipe is engineered for robust industrial applications. This straight adapter features a 7/8 - 14 UNF male JIC connection on one side, designed for 5/8" fittings, ensuring compatibility with various hydraulic systems. On the opposite side, it offers a 16mm female DIN standpipe connection, providing versatility in connecting different components within complex systems. With an overall length of 55.5mm and a width of 27mm, this standpipe is precisely manufactured to meet demanding specifications.

The Adaptall brand ensures a high standard of quality and reliability, making this component suitable for high-pressure environments. Its straightforward design facilitates easy installation and integration into existing hydraulic setups, making it an essential part for maintenance and repair tasks. Ideal for use in environments where precision and durability are paramount, this standpipe offers the reliability needed for efficient operation in industrial settings.

SKU: 9200-10-16

Supplier Part Number (MPN): 9200-10-16

Specifications

Connection Size 1 5/8 in	Connection Size 2 S16	Connection Type Female Standpipe, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female DIN Standpipe	Dimension Standards DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514	Dimensions 56 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 9200 Series	Thread Size 7/8-14

Product Questions & Answers (2)

Question by: Travis M on Apr 3, 2026, 9:11 PM

Got a 16mm DIN standpipe port on a hydraulic manifold and need to tie into a JIC line, this the right piece for that?

Answer by: Customer Support on Apr 5, 2026, 10:11 AM

That's exactly the application this fitting covers. One end is a 7/8-14 UNF male JIC connection sized for 5/8" fittings, and the other end is a 16mm female DIN standpipe. So if you've got a DIN standpipe port on your manifold and a JIC hydraulic line coming in, this adapter bridges that transition in a straight, compact package. Overall length runs 55.5mm with a 27mm width, so it fits tight without a lot of extra bulk.

Question by: Shawn H on Nov 29, 2025, 2:46 PM

Is this here standpipe made outta steel? Just wanna make sure it can handle the pressure.

Answer by: Customer Support on Dec 1, 2025, 6:37 AM

it's steel. So it's built tough for them heavy-duty jobs.
