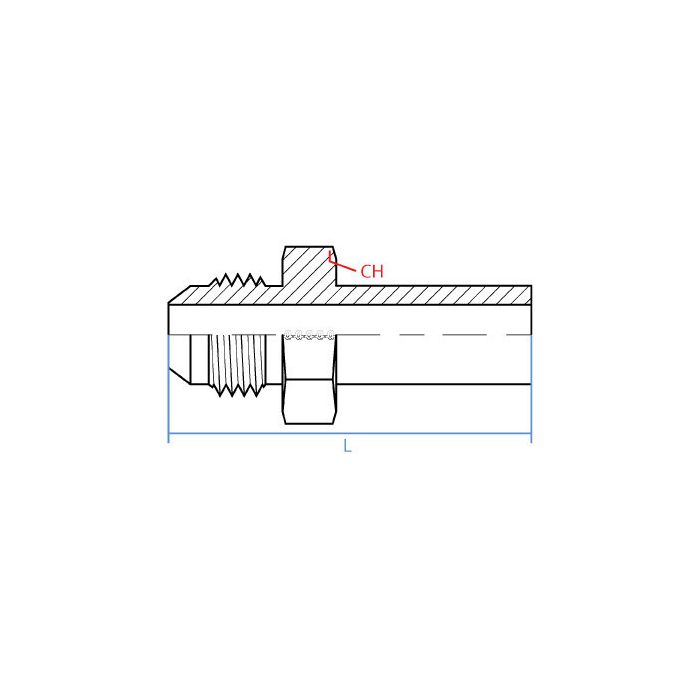

main product photo

Male Jic X Metric Standpipe

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this Male JIC X Metric Standpipe provides a reliable transition between a 3/4" male JIC fitting (1-1/16-12 UN thread) and an 18mm female DIN standpipe connection. At 64.7mm in length with a 32mm wrench width, it is sized for secure installation in compact hydraulic assemblies where JIC and metric DIN interfaces must be joined without intermediate components.

Supplied by Adaptall, this adapter suits hydraulic circuits that combine SAE JIC-standard lines with metric DIN standpipe ports, a common requirement in mixed-standard mobile and industrial hydraulic equipment. Steel construction supports the mechanical demands typical of these applications.

SKU: 9200-12-18

Supplier Part Number (MPN): 9200-12-18

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
18 mm
Connection Type
Female Standpipe, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female DIN Standpipe
Dimension Standards
DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Dimensions
65 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
9200 Series
Thread Size
1-1/16-12

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Male Jic X Metric Standpipe

9200-04-06

1/4 in

6 mm

7/16-20

14 mm

Male Jic X Metric Standpipe

9200-04-08

1/4 in

8 mm

7/16-20

14 mm

Male Jic X Metric Standpipe

9200-04-10

1/4 in

10 mm

7/16-20

14 mm

Male Jic X Metric Standpipe

9200-06-10

3/8 in

10 mm

9/16-18

16 mm

Male Jic X Metric Standpipe

9200-06-12

3/8 in

12 mm

9/16-18

16 mm

Male Jic X Metric Standpipe

9200-08-12

1/2 in

12 mm

3/4-16

22 mm

Male Jic X Metric Standpipe

9200-08-14

1/2 in

14 mm

3/4-16

22 mm

Male Jic X Metric Standpipe

9200-08-15

1/2 in

15 mm

3/4-16

22 mm

Male Jic X Metric Standpipe

9200-08-16

1/2 in

S16

3/4-16

22 mm

Male Jic X Metric Standpipe

9200-10-16

5/8 in

S16

7/8-14

27 mm

Male Jic X Metric Standpipe

9200-10-20

5/8 in

20 mm

7/8-14

27 mm

Male Jic X Metric Standpipe

9200-12-16

3/4 in

S16

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-12-20

3/4 in

20 mm

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-12-22

3/4 in

22 mm

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-12-25

3/4 in

S25

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-16-25

1 in

S25

1-5/16-12

35 mm

Male Jic X Metric Standpipe

9200-20-35

1-1/4 in

35 mm

1-5/8-12

Male Jic X Metric Standpipe

9200-20-38

1-1/4 in

38S

1-5/8-12

Male Jic X Metric Standpipe

9200-24-42

1-1/2 in

1-7/8-12

Product Questions & Answers (1)

Question by: Steve M on Oct 27, 2025, 8:55 PM
got a hose end that’s 3/4 JIC male, will this standpipe mate up to an 18mm DIN standpipe port on the other side?
Answer by: Customer Support on Oct 29, 2025, 4:17 PM
For tying two standards together, it bridges a 3/4 inch male JIC end with 1-1/16-12 UN threads over to an 18 mm female DIN standpipe connection, all in a straight adapter.
