Male Jic X Metric Standpipe

Description & Features

The Male Jic X Metric Standpipe from Adaptall America provides a reliable connection between Jic and Din standpipe systems. This steel connector ensures durability and strength in diverse industrial applications.

With a 1-1/16 - 12 UN thread on Side 1 and a 22mm Din standpipe connection on Side 2, the fitting delivers precise compatibility for metric and Jic interfaces. The straight design supports efficient and straightforward integration into existing setups.

Its non-adjustable nature simplifies its usage in various configurations, reducing potential points of failure. The steel construction offers high resistance against wear and tear, suitable for demanding environments.

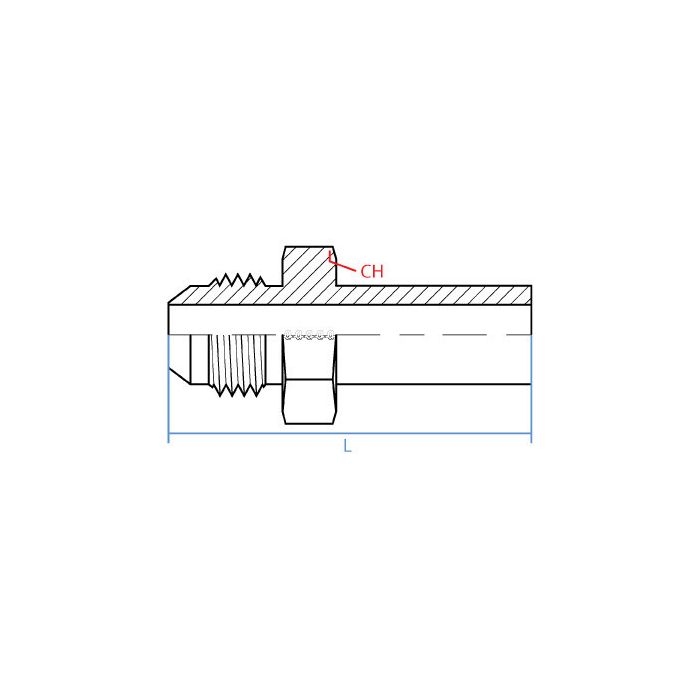

Measuring a length of 64.8mm and having a width of 32mm, this standpipe ensures consistent performance in rigorous conditions.

Supplier Part Number: 9200-12-22

Specifications

CH Width 32mm	L Length 64.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 22mm	Side 2 Gender F	Side 2 Size 22mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-12-22	Product Weight 0.35 lbs

Product Questions & Answers (1)

Question by: Sheila W on Jan 31, 2026, 7:24 PM

Will this fitting work to connect a JIC fitting to a DIN standpipe?

Answer by: Customer Support on Feb 2, 2026, 12:33 PM

This adapter is indeed designed to connect JIC to DIN standpipe systems, ensuring a secure and reliable connection between the two.
