Male Jic X Metric Standpipe

Ask A Question

Description & Features

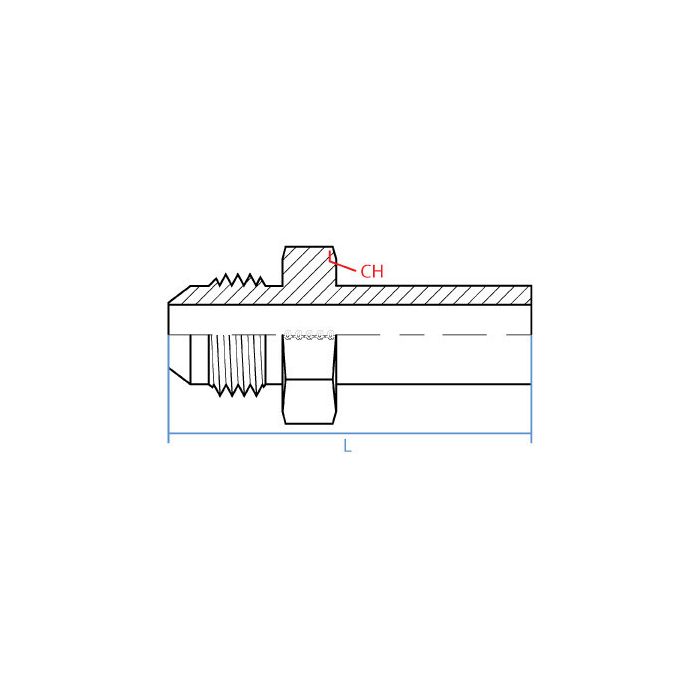

This steel Adaptall fitting is a Male Jic X Metric Standpipe, designed with a straight shape for secure connections. It features a 1" JIC male connection with 1-5/16 - 12 UN callout on one end and a 25mm DIN standpipe female connection on the other end.

The fitting has a 35mm wrench flat width and an overall length of 68.8mm, and is suitable for various hydraulic applications.

SKU: 9200-16-25

Supplier Part Number (MPN): 9200-16-25

Specifications

Connection Size 1
1 in
Connection Size 2
S25
Connection Type
Female Standpipe, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female DIN Standpipe
Dimension Standards
DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Dimensions
69 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
35 mm
Material
Steel
Material Construction
Carbon Steel
Series
9200 Series
Thread Size
1-5/16-12

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Hugh A on Jul 12, 2025, 4:56 PM
got a hose end that’s 1-5/16 - 12 UN JIC male, will this mate up to a 25mm DIN standpipe female on the other side?
Answer by: Customer Support on Jul 14, 2025, 6:52 AM
On the JIC side, you are getting a 1 inch male JIC with a 1-5/16 - 12 UN thread callout, and the other end is a 25mm DIN standpipe female. It is a straight steel adapter meant to bridge those two connection types.
Question by: Shane T on Jul 27, 2025, 6:11 AM
Got a 25mm DIN standpipe port on a manifold block and need to tie it into a JIC hose line. This fitting work for that?
Answer by: Customer Support on Jul 29, 2025, 6:49 AM
That's exactly the kind of crossover connection this fitting handles. One end is a 1 inch JIC male, threaded at 1-5/16-12 UN, and the other end accepts a 25mm DIN standpipe female connection. Steel construction, straight body, 68.8mm overall length. As long as your manifold port matches that 25mm DIN standpipe spec, you're in good shape.
