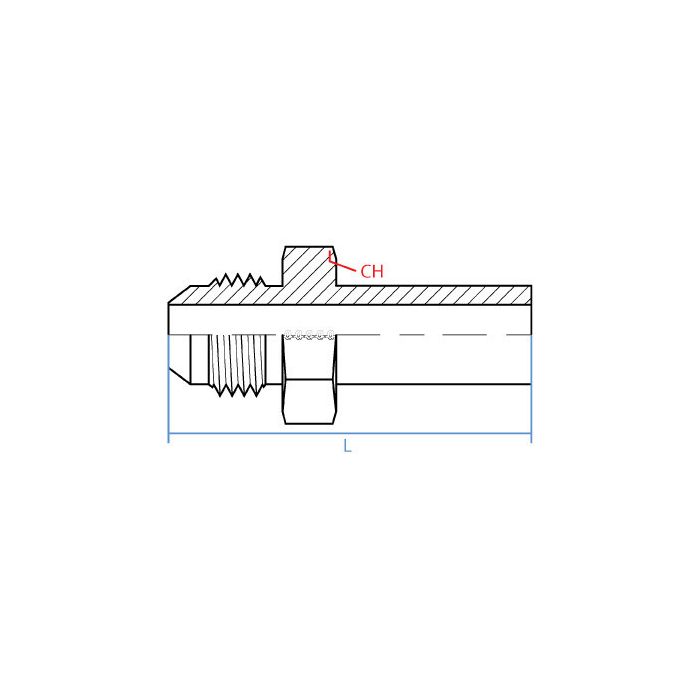

main product photo

Male Jic X Metric Standpipe

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this Male Jic X Metric Standpipe adapts a 1-1/4" male JIC connection (1-5/8-12 UN thread) to a 38mm female Din Standpipe fitting. With an overall length of 90.2mm and a wrench width of 44.5mm, it suits inline hydraulic circuit connections where JIC and metric Din Standpipe interfaces must be joined without additional adapters.

Produced by Adaptall, this fitting is a reliable choice for hydraulic systems requiring a direct transition between inch-series JIC and metric Din Standpipe standards. The straight geometry keeps routing straightforward in space-constrained installations.

SKU: 9200-20-38

Supplier Part Number (MPN): 9200-20-38

Specifications

Connection Size 1
1-1/4 in
Connection Size 2
38S
Connection Type
Female Standpipe, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female DIN Standpipe
Dimension Standards
DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Dimensions
90.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9200 Series
Thread Size
1-5/8-12

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Tony M on Oct 14, 2025, 10:12 AM
Got a line running 1-1/4" JIC on one end and the other side is a 38mm DIN standpipe fitting, does this adapter handle that crossover direct, or do I need something in between?
Answer by: Customer Support on Oct 15, 2025, 12:48 PM
That's exactly what this fitting is built for. One end is a 1-1/4" male JIC with a 1-5/8-12 UN thread, and the other connects to a 38mm female DIN standpipe. Straight configuration, no intermediate pieces needed. Adaptall makes it as a single-body steel adapter, so you're going directly from your JIC circuit into the metric DIN standpipe interface without stacking fittings.
Question by: Denise W on Aug 24, 2025, 6:36 PM
I need to connect a JIC fitting to a metric standpipe. Will this do the trick without needing a bunch of extra adapters?
Answer by: Customer Support on Aug 26, 2025, 2:33 PM
Yes, this male JIC to metric standpipe adapter directly connects a 1-1/4" male JIC to a 38mm female DIN standpipe. It's designed to simplify your hydraulic connections when you're working with both inch and metric systems.
