Male Jic X Solid Female Jis

Description & Features

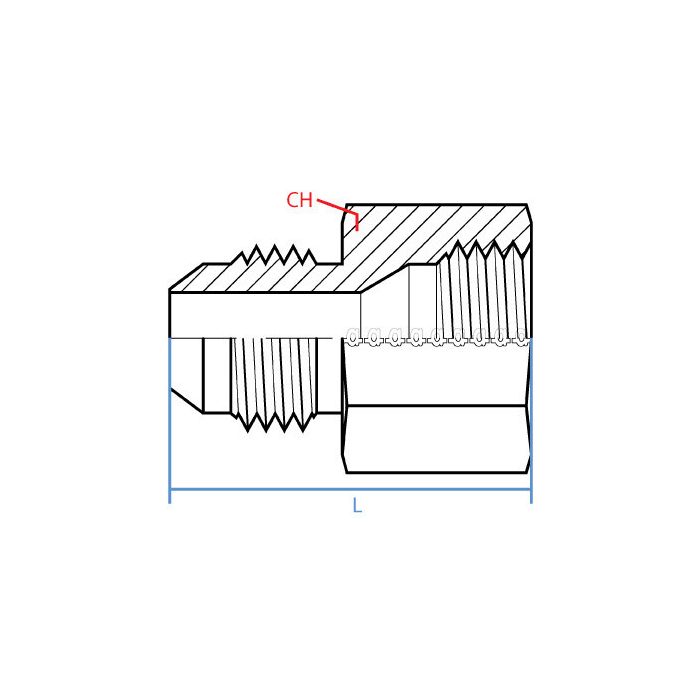

Constructed from steel in a straight configuration, this adapter connects a 1/4" Male JIC fitting, threaded at 7/16-20 UNF, to a 1/8" Solid Female JIS port. The Male JIC X Solid Female Jis is an Adaptall product designed for cross-standard hydraulic connections where JIC and JIS interfaces must be joined in a single inline fitting.

The solid female JIS end provides a reliable sealed connection at the JIS port face, making this adapter suitable for use in hydraulic circuits that incorporate Japanese Industrial Standard porting alongside standard JIC flare fittings. Steel construction supports use in demanding industrial hydraulic environments.

SKU: 9220-04-02

Supplier Part Number (MPN): 9220-04-02

Specifications

Connection Size 1 1/4 in	Connection Size 2 1/8 in	Connection Type Female JIS, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female JIS	Dimension Standards ISO 8434-2, JIS B 0202, SAE J514	Dimensions 29.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 16 mm	Material Steel	Material Construction Carbon Steel	Series 9220 Series	Thread Size 7/16-20 x 1/8-28

Product Questions & Answers (1)

Question by: Ronnie P on May 7, 2025, 4:40 PM

Got a hydraulic line on a piece of equipment that's running JIC on one end and a JIS port on the other, will this adapter handle that crossover without needing extra fittings in between?

Answer by: Customer Support on May 9, 2025, 6:26 AM

Straight inline connection, no extra pieces needed. One end is a 1/4" Male JIC with a 7/16-20 UNF thread, and the other is a 1/8" Solid Female JIS port. So if your circuit has those two standards meeting at a single point, this adapter bridges them in one shot. Steel construction holds up well in working hydraulic environments, and the solid female JIS end gives you a reliable face seal at the JIS side.
