Male Jic X Solid Female Jis

Ask A Question

Description & Features

This straight Adaptall fitting features a male JIC (JIC 37° Flare) end on one side and a solid female JIS (Japanese Industrial Standard) connection on the other.

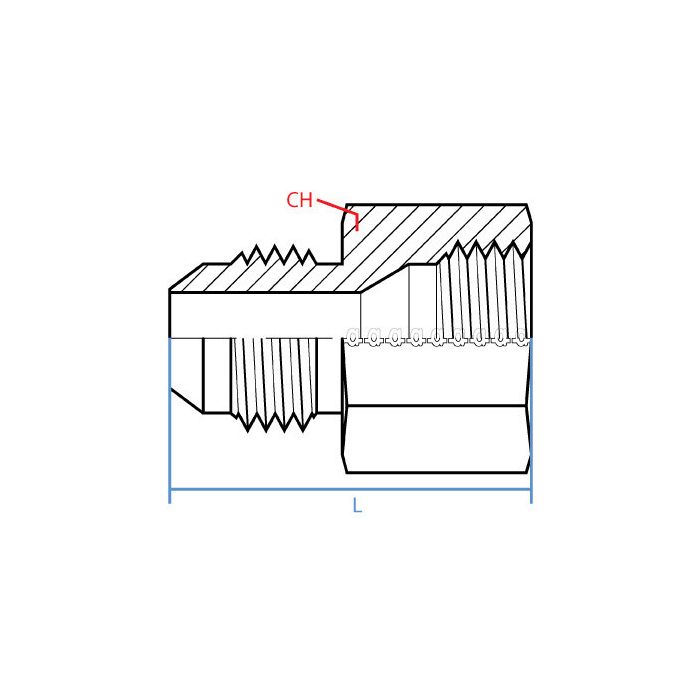

The fitting is constructed from steel, offering durability in hydraulic applications. The Adaptall Ch Width is 35mm, and the Adaptall L Length is 52.1mm. The male JIC side has a 3/4" size and 1-1/16 - 12 UN callout, while the female JIS side also has a 3/4" size. This Male JIC X Solid Female Jis fitting is used to adapt between JIC and JIS standards.

SKU: 9220-12-12

Supplier Part Number (MPN): 9220-12-12

Alternate Part Numbers: C1GB52, MI-02116367, MINO-03671J02706

Specifications

Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIS, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female JIS
Dimension Standards
ISO 8434-2, JIS B 0202, SAE J514
Dimensions
47.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
9220 Series
Thread Size
1-1/16-12 x 3/4-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Rhonda H on Jan 11, 2026, 1:47 PM
trying to hook a JIC hose up to a JIS port, is this the right adapter?
Answer by: Customer Support on Jan 13, 2026, 6:39 AM
Built for adapting between standards, it has a male JIC 37 degree flare on one end and a solid female JIS connection on the other, so it is meant for exactly that kind of JIC to JIS hookup.
Question by: Randy S on Oct 5, 2025, 9:20 PM
fitting's a straight shot, right? no angle or swivel to it?
Answer by: Customer Support on Oct 7, 2025, 6:45 AM
Correct, it runs straight through with no offset or rotation. One end is a male JIC 37-degree flare in 3/4" with a 1-1/16-12 UN thread, and the other is a solid female JIS connection, also 3/4". Solid female means there's no swivel movement on the JIS side, so both connections are fixed in place once installed.
