Japanese Industrial Std Plug

Description & Features

Manufactured by Adaptall, this steel plug is designed to conform to the Japanese Industrial Standard (Jis), providing a reliable sealing solution for hydraulic circuits requiring a 3/4" male port closure. The G 3/4 - 14 thread designation makes it well-suited for use with metric-compatible hydraulic assemblies and manifold ports that follow Jis thread standards.

The Japanese Industrial Std Plug measures 40mm in length with a 32mm channel width, offering a compact footprint in space-constrained installations. Steel construction provides the durability expected in demanding hydraulic service environments. As part of the Adaptall adapter system, it is compatible with a wide range of Adaptall fittings and configurations.

SKU: 9221-12

Supplier Part Number (MPN): 9221-12

Alternate Part Numbers: C1GL47, MI-02116373, MINO-03671J02711

Specifications

Brand adapt-all	Connection Size 1 L12	Connection Type Male JIS	Connection Type 1 Male JIS	Dimension Standards JIS B 0202	Dimensions 32.5 mm L	Finish Zinc-Plated	Fitting Type Plug	Material Steel	Material Construction Carbon Steel	Series 9221 Series	Thread Size 3/4-14

Product Questions & Answers (3)

Question by: Carl T on Feb 27, 2026, 8:57 PM

Got a G 3/4 - 14 JIS port I need to cap off on a hydraulic manifold. This the right plug for that?

Answer by: Customer Support on Mar 1, 2026, 6:34 PM

For a male G 3/4 - 14 JIS port, yes, that's exactly what this plug is built for. It's a steel Adaptall JIS plug with a 3/4 inch male side in that thread standard, so it should seat right into that port without any adapter needed. The 40mm length and 32mm wrench width give you enough to torque it down properly.

Question by: Rusty E on Oct 3, 2025, 10:24 AM

got a fitting with G 3/4 - 14 threads, is this the right plug for that?

Answer by: Customer Support on Oct 4, 2025, 11:57 AM

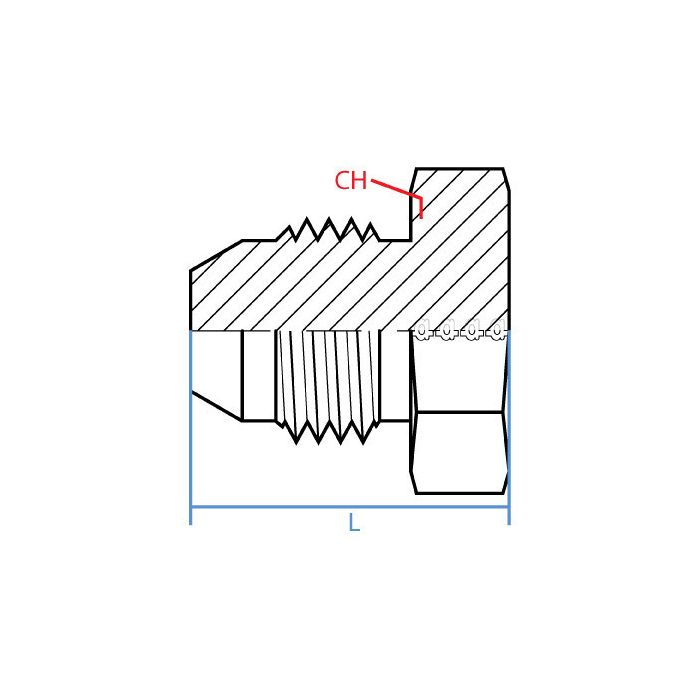

For a G 3/4 - 14 male plug in the JIS style, this Adaptall plug matches that thread callout and size. It’s a steel plug with a 32 mm hex (CH) and an overall length listed at 40 mm.

Question by: Melvin C on Aug 31, 2025, 11:59 AM

Is this plug steel all the way through? Just want to make sure for my application.

Answer by: Customer Support on Sep 1, 2025, 4:26 PM

Yes, this Adaptall plug is made entirely of steel.
