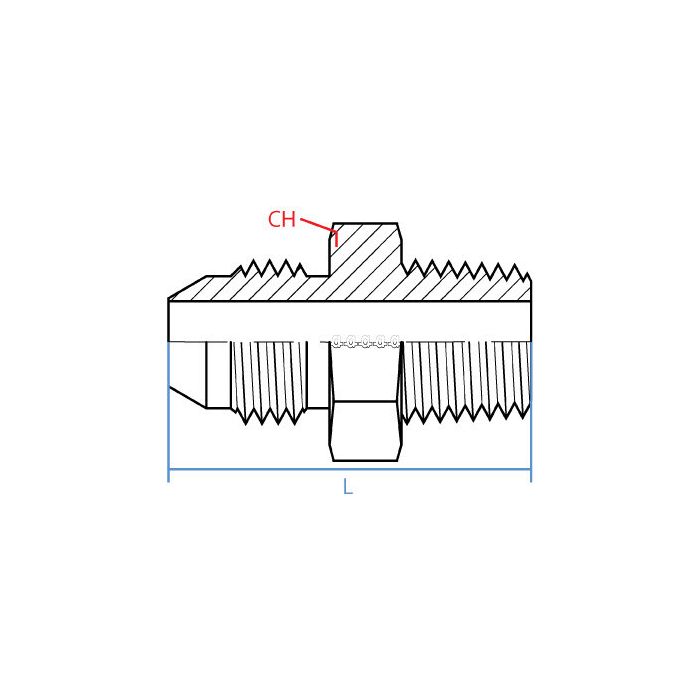

main product photo

Male Jis X Male Bspt

Ask A Question

Description & Features

Engineered for optimal compatibility, this male JIS to male BSPT adapter ensures seamless integration in hydraulic systems requiring a reliable connection between Japanese Industrial Standard (JIS) and British Standard Pipe Taper (BSPT) threads. Crafted from durable steel, this adapter guarantees longevity and robust performance under demanding conditions. Featuring a straight design, it effectively links two male ends with a size of 1/2" each, making it a versatile choice for various industrial applications.

The adapter measures 52.4mm in length and has a 22mm width across the flats, facilitating easy installation and maintenance. The G 1/2 - 14 thread on the JIS side and the R 1/2 - 14 thread on the BSPT side ensure a secure and leak-proof fit, essential for maintaining system integrity. Manufactured by Adaptall, this adapter exemplifies precision engineering, providing a critical solution for fluid transfer in industrial environments.

SKU: 9223-08-08

Supplier Part Number (MPN): 9223-08-08

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male JIS
Connection Type 1
Male JIS
Connection Type 2
Male BSPT
Dimension Standards
DIN EN 10226-1, ISO 7-1, JIS B 0202
Dimensions
48 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9223 Series
Thread Size
1/2-14

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Gary S on Oct 23, 2025, 9:54 AM
Got a piece of Japanese equipment that needs to tie into a BSPT line, this the right adapter to bridge that gap?
Answer by: Customer Support on Oct 24, 2025, 4:01 PM
Exactly what this part is built for. One end carries a G 1/2 - 14 JIS thread and the other runs R 1/2 - 14 BSPT, so it connects those two standards directly without any intermediate fittings. Both sides are 1/2 inch male, and the straight configuration keeps the hydraulic connections clean and in-line. Steel construction holds up well in working hydraulic environments, and at 52.4mm long with a 22mm wrench flat, installation is pretty straightforward with standard tooling.
Question by: Travis W on Jan 20, 2026, 3:15 PM
got a hose end that’s JIS G 1/2-14 and the port on the other side is BSPT R 1/2-14, is this the right little adapter to marry those up?
Answer by: Customer Support on Jan 22, 2026, 9:16 AM
For tying those two thread standards together, this adapter is the match. It is a straight steel male to male piece with a JIS G 1/2 - 14 on one end and a BSPT R 1/2 - 14 on the other, both in 1/2 inch size.
Question by: Todd M on Jan 29, 2026, 11:49 AM
What kinda steel is this made outta? I need it to hold up.
Answer by: Customer Support on Jan 31, 2026, 10:16 AM
Crafted from durable steel, this adapter is designed for longevity, even under demanding conditions.
