Male Jis X Male Bspt

Description & Features

Manufactured from steel in a straight configuration, this 1-inch adapter connects a Male Jis (G 1-11) fitting on one end to a Male Bspt (R 1-11) thread on the other, enabling direct coupling between JIS and BSPT threaded ports without additional adapters. The straight body measures 67.9mm in length with a 35mm wrench width, making it straightforward to install in confined hydraulic assemblies.

The Male Jis X Male Bspt is an Adaptall product, suited for hydraulic systems requiring thread-type conversion between Japanese Industrial Standard and British Standard Pipe Taper connections. Both sides carry 1-inch, 11 TPI threading, ensuring a consistent size match across the transition.

SKU: 9223-16-16

Supplier Part Number (MPN): 9223-16-16

Specifications

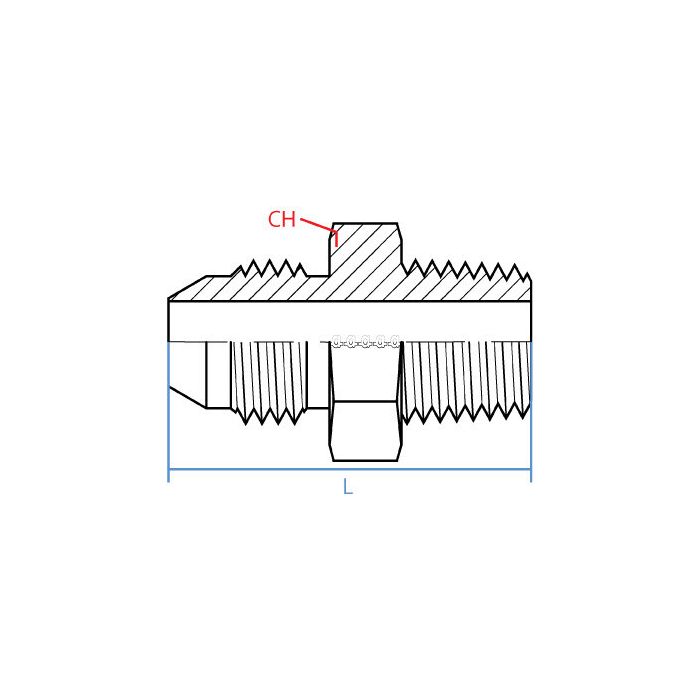

CH Width 35mm	L Length 67.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jis	Side 2 Callout R 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9223-16-16	Product Weight 0.50 lbs

Product Questions & Answers (3)

Question by: Phil H on Mar 24, 2026, 9:50 PM

Will this adapter work to connect a JIS fitting to a BSPT fitting, or do I need something else?

Answer by: Customer Support on Mar 26, 2026, 6:56 AM

This adapter directly connects a Male Jis (G 1-11) fitting to a Male Bspt (R 1-11) thread, so you don't need any extra adapters for that connection.

Question by: Hubert W on Nov 28, 2025, 4:37 PM

got a port that’s JIS G 1-11 on one side and BSPT R 1-11 on the other. Is this the straight adapter for that, or am I mixing threads up

Answer by: Customer Support on Nov 30, 2025, 6:20 AM

It bridges a Male JIS G 1-11 connection to a Male BSPT R 1-11 connection, both in 1 inch size with 11 TPI. The body is straight, so it is meant for a direct in-line conversion between those two thread types.

Question by: Troy B on Dec 29, 2025, 10:44 AM

got a JIS port on my pump and a BSPT port on the line coming off the manifold, this the right piece to tie those two together directly?

Answer by: Customer Support on Dec 30, 2025, 7:17 PM

That's what it's built for. One end is Male JIS (G 1-11) and the other is Male BSPT (R 1-11), both at 1 inch with 11 TPI threading. So if your pump port is JIS and your manifold connection is BSPT, this adapter bridges that gap in a single piece without stacking extra fittings in between.
