90* Male Jis X Male Bspt Elbow

Description & Features

This 90° steel elbow adapter features a male JIS (Japanese Industrial Standard) connection on one side and a male BSPT (British Standard Pipe Tapered) connection on the other.

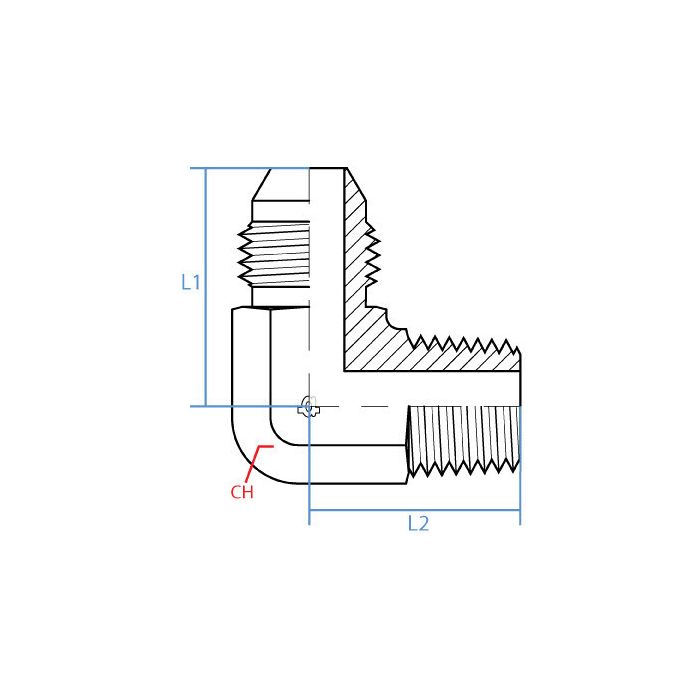

The Adaptall 90* Male Jis X Male Bspt Elbow has a Side 1 callout of G 1/2 - 14, a 1/2" size, and a JIS type. Side 2 has a callout of R 1/2 - 14, a 1/2" size, and a Bspt type. The width across flats is 22mm. L1 Length: 34mm. L2 Length: 31mm.

SKU: 9224-08-08

Supplier Part Number (MPN): 9224-08-08

Specifications

Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Male BSP, Male JIS	Connection Type 1 Male JIS	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, JIS B 0202	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	Series 9224 Series	Thread Size 1/2-14

Product Questions & Answers (2)

Question by: Dwight T on Apr 22, 2025, 11:07 AM

Will this fitting work with regular NPT threads, or is it strictly for BSPT?

Answer by: Customer Support on Apr 24, 2025, 6:34 AM

This elbow has a male BSPT connection on one side, and a male JIS connection on the other; it's not compatible with NPT threads.

Question by: Floyd S on Jun 25, 2025, 3:48 PM

Got a piece of equipment running JIS fittings on one end and BSPT on the other, does this elbow handle both those thread types in the same fitting?

Answer by: Customer Support on Jun 26, 2025, 4:08 PM

That's what it does. One side is male JIS with a G 1/2 - 14 thread, and the other is male BSPT with an R 1/2 - 14 thread. Both sides are 1/2" size, so you're getting a direct 90-degree connection between those two standards without needing a separate adapter in between. Steel construction on the whole thing.
