90* Male Jis X Male Bspt Elbow

Description & Features

A steel 90-degree elbow designed to connect Male JIS and Male BSPT threaded ports, this 90° Male Jis X Male Bspt Elbow is well suited for hydraulic circuit routing where a right-angle transition between these two thread standards is required. Both sides carry a 3/4" thread size, Side 1 specified as G 3/4-14 (JIS) and Side 2 as R 3/4-14 (BSPT), making it a practical solution for systems that combine Japanese Industrial Standard and British Standard Pipe Taper fittings.

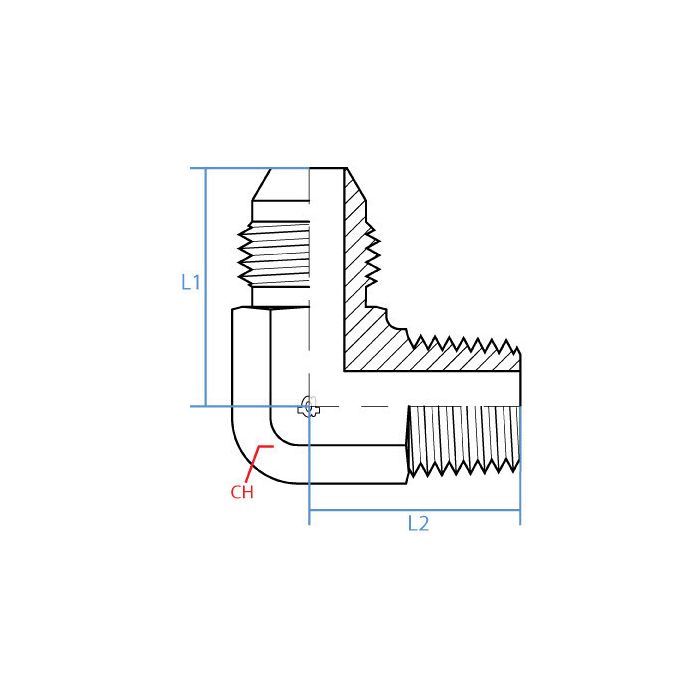

Manufactured by Adaptall, the fitting is constructed from steel and configured in a 90-degree elbow shape with an overall L1 length of 39mm and L2 length of 36mm, with a wrench-across width of 27mm. The male-to-male configuration suits direct port-to-port connections without additional adapters where compatible thread forms are present on both mating components.

SKU: 9224-12-12

Supplier Part Number (MPN): 9224-12-12

Specifications

CH Width 27mm	L1 Length 39mm	L2 Length 36mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jis	Side 2 Callout R 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9224-12-12	Product Weight 0.50 lbs

Product Questions & Answers (1)

Question by: Brent M on Dec 6, 2025, 6:14 AM

Will this elbow work to connect a JIS fitting to a BSPT one? That's what I need it for.

Answer by: Customer Support on Dec 7, 2025, 7:12 PM

Absolutely, that's exactly what it's for. It's designed to connect a male JIS threaded port to a male BSPT threaded port at a 90-degree angle.
