Nissan Mjic X 50* Male Metric

Ask A Question

Description & Features

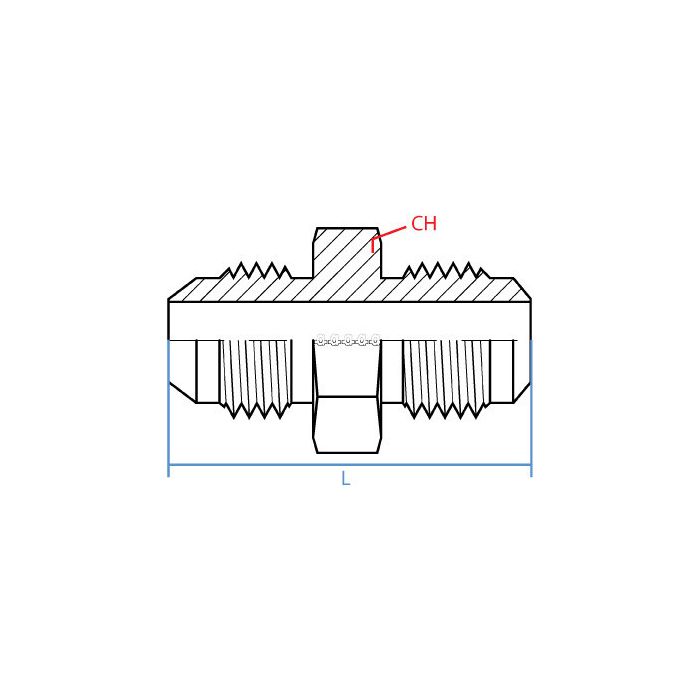

This straight steel Adaptall fitting connects Nissan and JIC hydraulic lines. Side 1 features 9/16-18 UNF male JIC threads with a 3/8" size. Side 2 features 12mm male Nissan threads with a 16mm size. The Nissan Mjic X 50* Male Metric fitting has a wrench width of 20.5mm and an overall length of 40.7mm.

SKU: 9228-06-16

Supplier Part Number (MPN): 9228-06-16

Specifications

Connection Size 1
3/8 in
Connection Size 2
S16
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric
Dimension Standards
ISO 261, ISO 8434-2, SAE J514
Dimensions
40.7 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
20 mm
Material
Steel
Material Construction
Carbon Steel
Series
9228 Series
Thread Size
9/16-18 x M16x1.5

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Steve M on Apr 21, 2025, 8:51 PM
fitting's got 12mm on one side and 9/16-18 UNF on the other -- trying to connect a Nissan hydraulic line to a JIC fitting on a pump. this the right one for that job?
Answer by: Customer Support on Apr 23, 2025, 4:38 PM
That's what this piece is built for. One end is 12mm male Nissan thread, the other is 9/16-18 UNF male JIC at 3/8" size. Straight body, steel construction. If your Nissan line and JIC port match those specs, you've got the right adapter.
Question by: Ronnie W on Jan 5, 2026, 9:58 PM
Will this fitting work to connect a Nissan line to a JIC line?
Answer by: Customer Support on Jan 7, 2026, 3:29 PM
This Adaptall fitting is designed to connect Nissan and JIC hydraulic lines, with a 12mm male Nissan thread on one side and a 9/16-18 UNF male JIC thread on the other.
Question by: Kirk F on Mar 12, 2026, 9:53 PM
trying to hook a Nissan line to a JIC hose, is this the straight adapter that goes between them?
Answer by: Customer Support on Mar 14, 2026, 6:22 AM
For connecting those two styles, it’s a straight steel Adaptall fitting with Nissan male threads on one side and male JIC on the other. Side 1 is a 9/16-18 UNF male JIC in 3/8 inch size, and side 2 is a 12 mm male Nissan thread with a 16 mm size.
