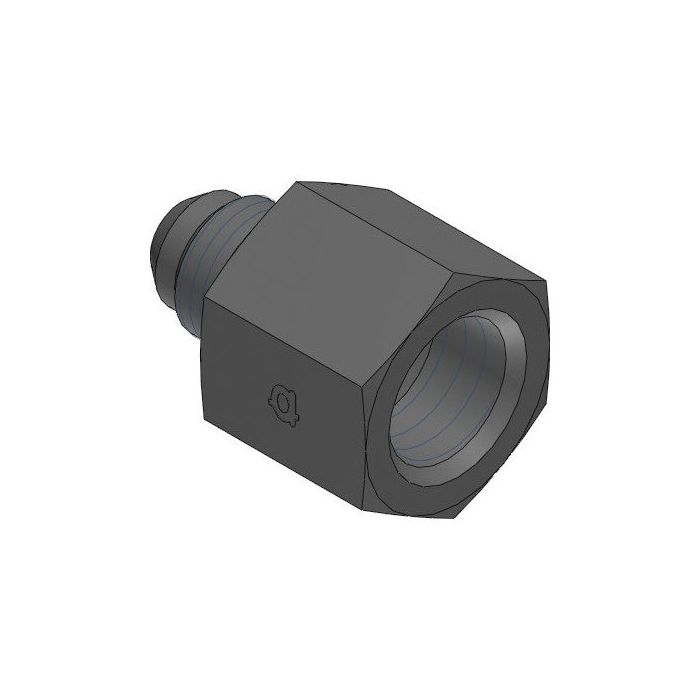

Male Jic X Solid Fem. Komatsu

Description & Features

Manufactured by Adaptall, this component is designed for seamless integration with Komatsu equipment. Its robust construction features high-quality steel, ensuring durability in demanding industrial environments. The Male Jic x Solid Fem. Komatsu fitting comes with a 9/16 - 18 UNF male thread on one side and a 14mm female thread on the other, perfectly suiting various hydraulic applications.

With a straight shape and a compact design, this product offers efficient space utilization. The dimensions are precisely engineered, with a length of 34.5mm and a width of 22mm for optimal performance. The fitting is non-adjustable, which guarantees stability and reliability.

The Male Jic x Solid Fem. Komatsu fitting does not include additional accessories such as diodes, remote controls or calibration tools, making it straightforward for usage in its specified applications. Its steel material composition ensures resistance to wear and tear, enhancing the longevity of the component.

Supplier Part Number: 9230-06-16

Specifications

Brand adapt-all	Connection Size 1 3/8 in	Connection Size 2 S16	Connection Type Female Komatsu, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female Komatsu	Dimension Standards ISO 261, ISO 8434-2, SAE J514	Dimensions 34 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 22 mm	Material Steel	Material Construction Carbon Steel	Series 9230 Series	Thread Size 9/16-18 x M16x1.5

Product Questions & Answers (2)

Question by: Harold C on Dec 6, 2025, 11:44 AM

Will this fitting hold up okay in a hydraulic system that runs pretty hot, or do I need to look for something with better heat resistance?

Answer by: Customer Support on Dec 8, 2025, 9:25 AM

The fitting's steel construction is durable and should withstand normal hydraulic operating temperatures. However, if your system consistently runs at very high temperatures, it would be best practice to consult the hydraulic system manufacturer or a specialist to ensure compatibility and optimal performance.

Question by: Gary M on May 18, 2025, 11:22 AM

Got a Komatsu machine and need to tie in a JIC line, this fitting got the right threads to make that work?

Answer by: Customer Support on May 19, 2025, 2:45 PM

Yeah, that's exactly what this one's built for. One end is a 9/16-18 UNF male JIC thread, and the other is a 14mm female Komatsu thread. So if your hose or line terminates in a standard 3/8" JIC fitting and your Komatsu port is the 14mm female, you've got a direct match. Steel construction, straight profile, and it's a solid non-adjustable fitting, so once it's torqued down it stays put.
