Male Jic X Solid Fem. Komatsu

Description & Features

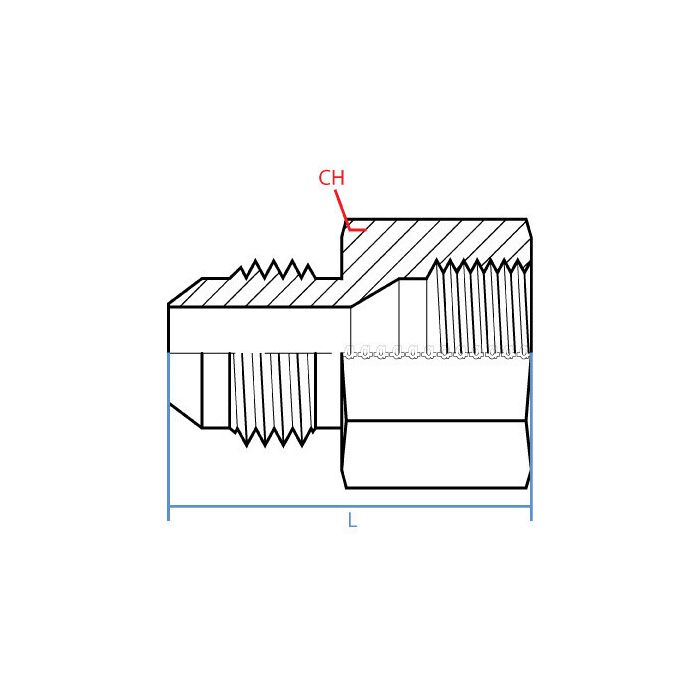

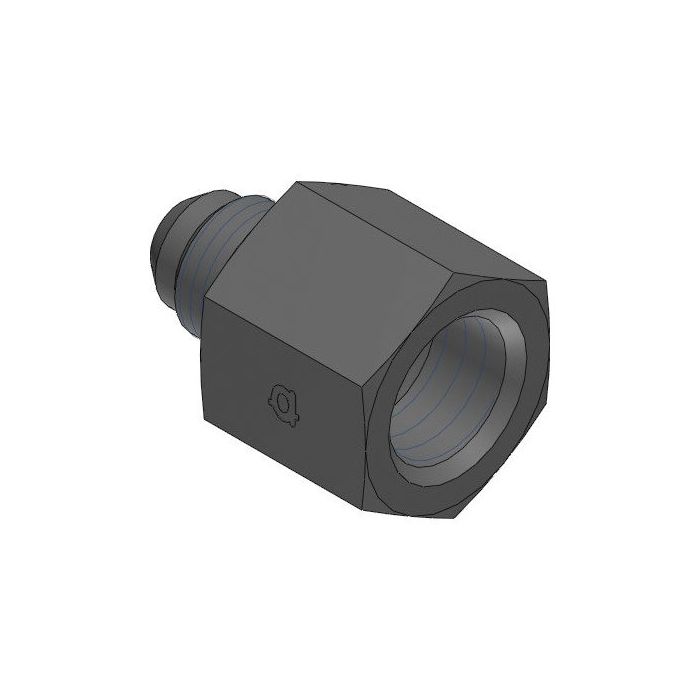

The Male Jic X Solid Fem. Komatsu by Adaptall America is constructed from durable steel, ensuring longevity and reliability. This high-quality, straight-shaped connector has male and female connection points with dimensions of 9/16 - 18 UNF on the male Jic end and 10mm on the female Komatsu end.

It features a 24mm width and a length of 35.7mm, offering precise fit and secure connections in various industrial settings. This non-adjustable component is designed without check valves or additional fittings, providing a streamlined solution for specific applications.

Supplier Part Number: 9230-06-18

Specifications

Brand adapt-all	Connection Size 1 3/8 in	Connection Size 2 18 mm	Connection Type Female Komatsu, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female Komatsu	Dimension Standards ISO 261, ISO 8434-2, SAE J514	Dimensions 36 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Series 9230 Series	Thread Size 9/16-18 x M18x1.5

Product Questions & Answers (2)

Question by: Neal T on Jan 18, 2026, 12:18 PM

trying to match up fittings here. Is this a straight adapter from a 9/16-18 JIC male to a 10mm Komatsu female?

Answer by: Customer Support on Jan 19, 2026, 2:40 PM

For fit checks, it is a straight steel connector with a male JIC end called out as 9/16-18 UNF (3/8 inch size) and a female Komatsu end called out as 10mm (18mm size).

Question by: Eddie R on Apr 19, 2025, 5:33 PM

So, this is a straight connector, right? Just wanna make sure before I order.

Answer by: Customer Support on Apr 21, 2025, 6:53 AM

Yes, this Adaptall America connector has a straight shape, which should make it suitable for tight spots. It is made of steel.
