Male Jic X Solid Fem. Komatsu

Description & Features

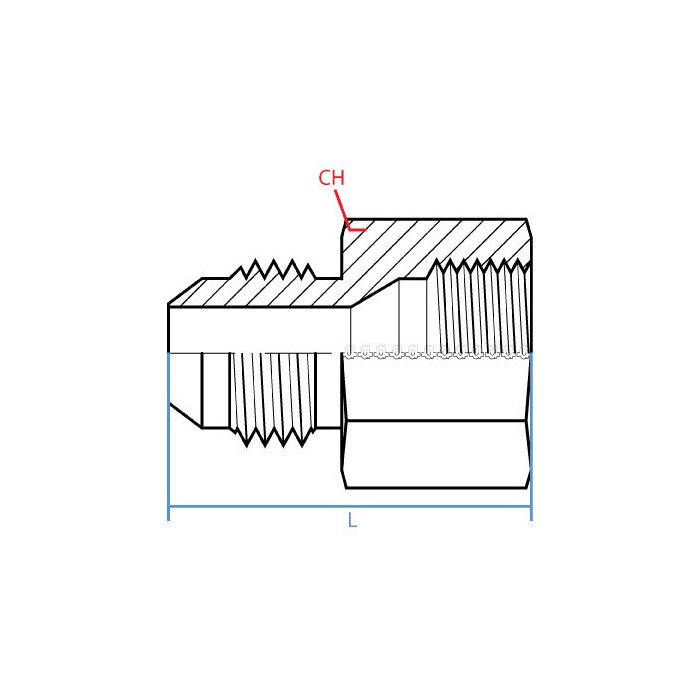

This straight steel adapter connects a 1/2" Male JIC fitting (3/4-16 UNF thread) on one end to a 22mm Solid Female Komatsu port on the other, making it a practical solution for integrating JIC-threaded hydraulic lines into Komatsu equipment hydraulic ports. The solid female Komatsu side features a 12mm callout, while overall length measures 39.4mm with a 27mm wrench width for straightforward installation.

The Male JIC X Solid Fem. Komatsu adapter is manufactured by Adaptall in steel construction, suited for hydraulic systems where a reliable, leak-resistant transition between JIC and Komatsu port configurations is required. Its straight profile keeps routing clean in space-constrained applications.

SKU: 9230-08-22

Supplier Part Number (MPN): 9230-08-22

Specifications

CH Width 27mm	L Length 39.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 12mm	Side 2 Gender F	Side 2 Size 22mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9230-08-22	Product Weight 0.20 lbs

Product Questions & Answers (1)

Question by: Dale M on Oct 26, 2025, 7:45 PM

trying to tie a 1/2 JIC hose into a Komatsu port, is this the right adapter?

Answer by: Customer Support on Oct 28, 2025, 6:07 AM

For that hookup, it bridges a 1/2 inch Male JIC end with 3/4-16 UNF threads over to a 22mm solid Female Komatsu port on the other side, so it fits the common JIC-to-Komatsu transition you’re describing.
