Male Jic X Solid Fem. Komatsu

Description & Features

Engineered for precision and reliability, this steel adapter features a straight design with a Male JIC fitting on one end and a Solid Female Komatsu fitting on the other. The Male JIC side boasts a 7/8 - 14 UNF thread and a 5/8" size, ensuring seamless integration with compatible systems. On the opposite end, the Solid Female Komatsu connection is sized at 24mm, providing robust compatibility with various hydraulic applications.

With dimensions of 44.4mm in length and a wrench width of 28.5mm, this adapter is designed for durability and ease of installation. Its steel construction offers excellent strength and resistance to wear, making it ideal for demanding industrial environments. The product is brought to you by Adaptall, a trusted name in hydraulic components.

SKU: 9230-10-24

Supplier Part Number (MPN): 9230-10-24

Specifications

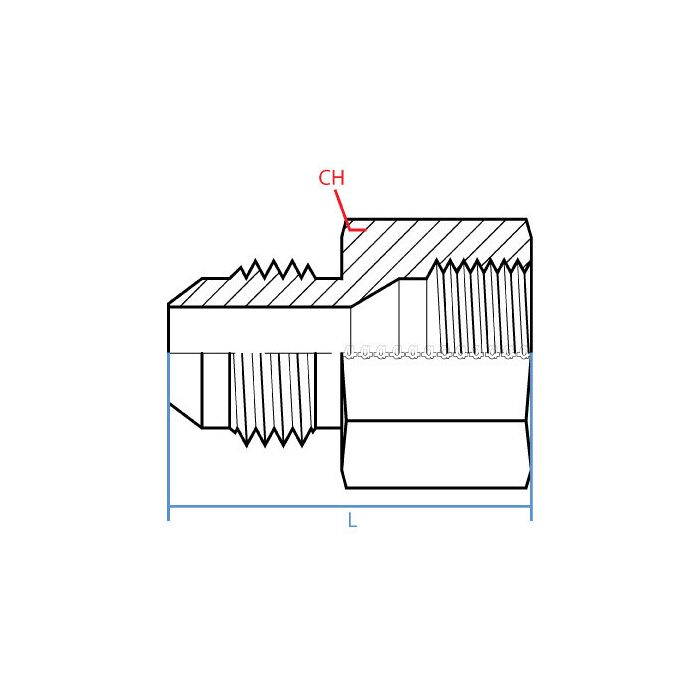

CH Width 28.5mm	L Length 44.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout 14mm	Side 2 Gender F	Side 2 Size 24mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9230-10-24	Product Weight 0.25 lbs

Product Questions & Answers (2)

Question by: Neil R on Oct 19, 2025, 8:25 AM

What size wrench do I need to tighten this adapter down?

Answer by: Customer Support on Oct 21, 2025, 7:31 AM

You'll want to use a 28.5mm wrench on this Adaptall adapter.

Question by: Wade M on Dec 29, 2025, 1:20 PM

adapter's got a male JIC on one end and female Komatsu on the other -- what size threads are we dealing with on the JIC side?

Answer by: Customer Support on Dec 30, 2025, 6:50 PM

The JIC end runs a 7/8-14 UNF thread, which corresponds to a 5/8" JIC fitting size. On the Komatsu end you've got a 24mm solid female connection. Overall the adapter measures 44.4mm long with a 28.5mm wrench width, so it's a pretty compact unit that shouldn't give you much trouble getting a wrench on it.
