Male Metric X Female Npt

Description & Features

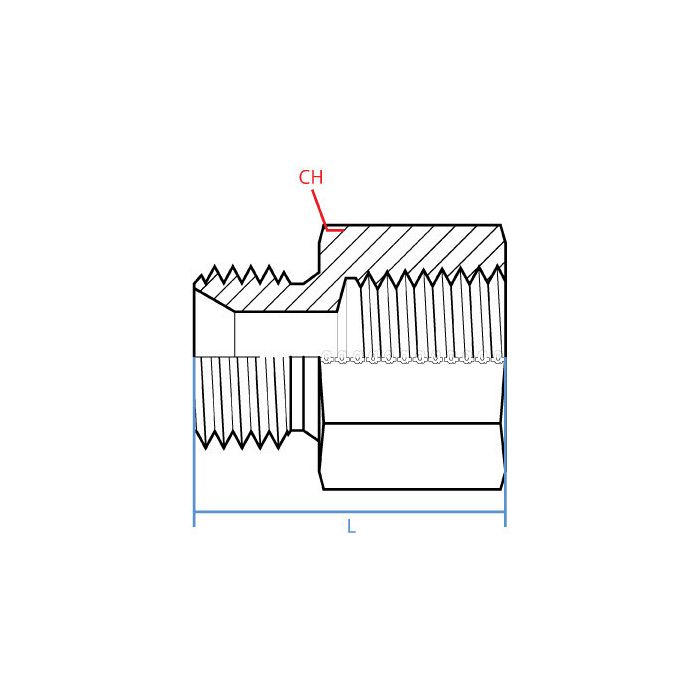

Manufactured from steel in a straight configuration, this Adaptall Male Metric X Female Npt adapter connects an M14 x 1.5 male metric thread on one end to a 3/8"-18 NPTF female port on the other. With an overall length of 36.6mm and a 22mm wrench flat, it is well-suited for hydraulic circuit assembly where metric and NPT-threaded components need to be joined inline.

The straight body keeps the connection compact, and the steel construction holds up to the demands of typical hydraulic system pressures and environments. This adapter is a practical solution for bridging metric and imperial thread standards within a single fitting.

SKU: 9235-14-06

Supplier Part Number (MPN): 9235-14-06

Alternate Part Numbers: C1EW49

Specifications

CH Width 22mm	L Length 36.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size 14mm	Side 1 Type Metric	Side 2 Callout 3/8 - 18 NPTF	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number C1EW49	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9235-14-06	Product Weight 0.15 lbs

Product Questions & Answers (3)

Question by: Debbie M on Jul 3, 2025, 9:48 AM

I need to hook up some metric stuff to a standard NPT thread, reckon this would do the trick?

Answer by: Customer Support on Jul 4, 2025, 8:27 PM

It's designed to connect an M14 x 1.5 male metric thread to a 3/8"-18 NPTF female thread, making it suitable for linking those two different standards.

Question by: Sherry W on Oct 25, 2025, 6:03 PM

got a pump port that’s M14 x 1.5 male and my hose end is 3/8-18 nptf, is this the right little adapter?

Answer by: Customer Support on Oct 27, 2025, 4:29 PM

For that exact thread match, you’re in the right ballpark. One side is M14 x 1.5 male metric, and the other side is a 3/8 inch 18 NPTF female port, so it bridges those two standards inline.

Question by: Hugh H on Sep 23, 2025, 7:29 PM

Got a metric port on a pump housing and need to tie into a 3/8 NPT line. This fitting do that job?

Answer by: Customer Support on Sep 25, 2025, 1:41 PM

That's what this one's built for. One end is M14 x 1.5 male metric, the other is 3/8"-18 NPTF female, so you'd thread the metric end into your pump housing and connect your NPT line on the other side. Straight body keeps everything in-line, and at 36.6mm long it stays pretty compact in tight quarters.
