Male Metric X Female Npt

Ask A Question

Description & Features

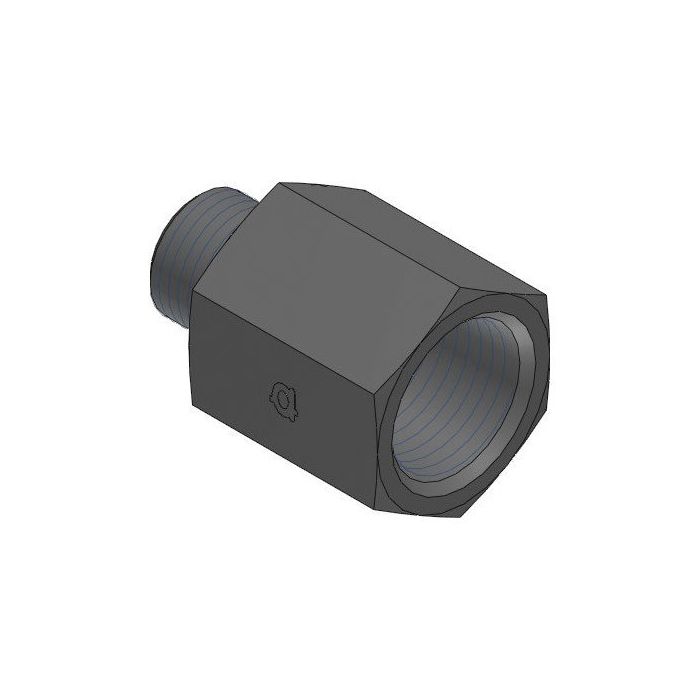

This Adaptall straight fitting is a male metric to female NPT adapter.

It features a 20mm male metric side with M20 x 1.5 threads, and a 3/8" female NPT side with 3/8 - 18 NPTF threads. This steel fitting has a wrench flat of 28.5mm and an overall length of 41.3mm.

SKU: 9235-20-06

Supplier Part Number (MPN): 9235-20-06

Specifications

Brand
adapt-all
Connection Size 1
20 mm
Connection Size 2
3/8 in
Connection Type
FNPT, Male Metric
Connection Type 1
Male Metric
Connection Type 2
Female NPT
Dimension Standards
ANSI B1.20.3, DIN 7631
Dimensions
44.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9235 Series
Thread Size
M20x1.5 x 3/8-18

Product Questions & Answers (3)

Question by: Brenda H on Apr 14, 2025, 10:02 AM
Got a metric port on a hydraulic manifold and need to tie into 3/8 NPT female threads on a hose end. this fitting do that job?
Answer by: Customer Support on Apr 16, 2025, 6:38 AM
That's what this one's for. One end is M20 x 1.5 male metric, the other is 3/8-18 NPTF female, so it bridges that metric-to-NPT gap in a straight run. Steel construction, 41.3mm overall length, and a 28.5mm wrench flat so you've got plenty of surface to torque it down properly without slipping.
Question by: Phil O on Jun 22, 2025, 4:16 PM
What size is the metric side of this fitting? Just wanna be sure it'll fit my equipment.
Answer by: Customer Support on Jun 24, 2025, 6:39 AM
The metric side is 20mm with M20 x 1.5 threads.
Question by: Kirk E on Aug 8, 2025, 7:58 AM
got a hose end with m20 x 1.5 on it and need to tie into 3/8 npt on the other side. is this the right adapter?
Answer by: Customer Support on Aug 10, 2025, 6:11 AM
For that matchup, it’s a straight steel adapter with a 20 mm male metric end threaded M20 x 1.5 and a 3/8 inch female NPTF end threaded 3/8 - 18, so it bridges exactly those two thread types and sizes.
