main product photo

Male Metric X Female Npt

Ask A Question

Description & Features

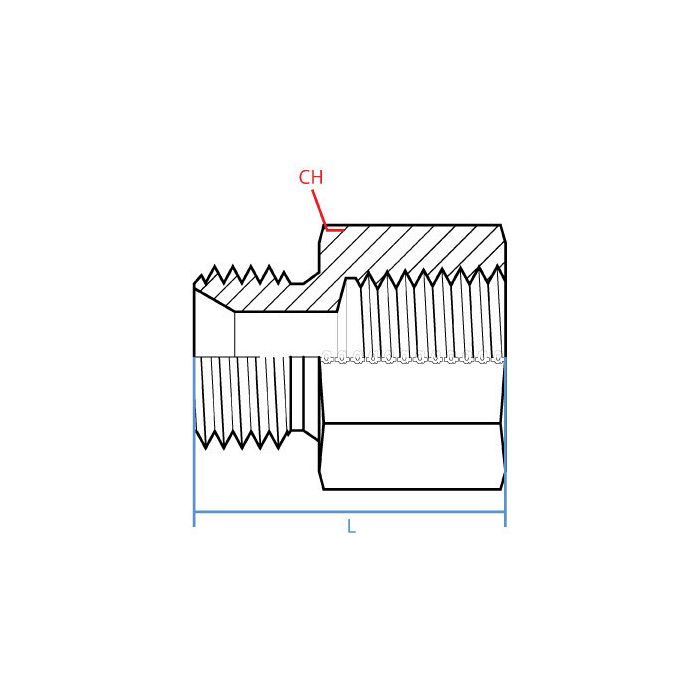

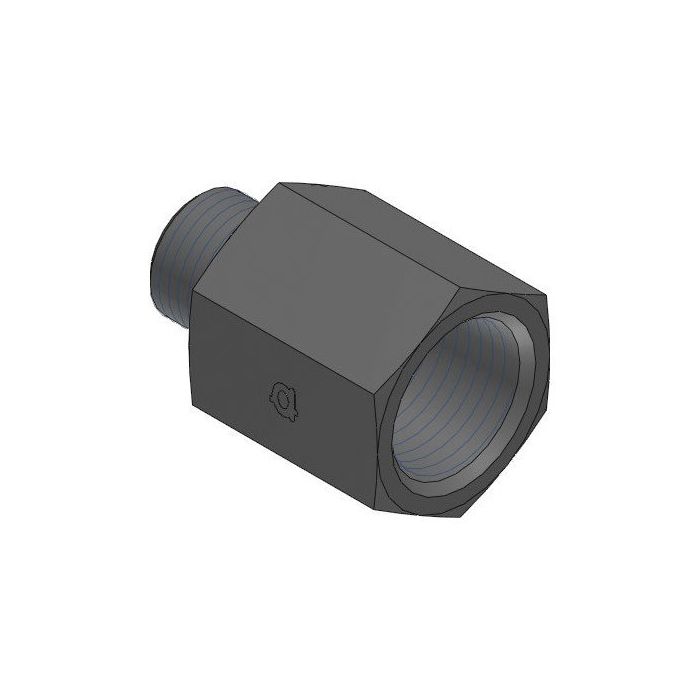

This steel straight adapter fitting features a male Metric M20 X 1.5 connection on one side and a female 1/2" NPT connection on the other.

The Adaptall fitting has a width of 28.5mm and an overall length of 41.1mm. This Male Metric X Female Npt adapter is suitable for various hydraulic applications.

SKU: 9235-20-08

Supplier Part Number (MPN): 9235-20-08

Specifications

Brand
adapt-all
Connection Size 1
20 mm
Connection Size 2
1/2 in
Connection Type
FNPT, Male Metric
Connection Type 1
Male Metric
Connection Type 2
Female NPT
Dimension Standards
ANSI B1.20.3, DIN 7631
Dimensions
45 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9235 Series
Thread Size
M20x1.5 x 1/2-14

Product Questions & Answers (3)

Question by: Ross M on Sep 3, 2025, 6:53 AM
Got a metric port on a hydraulic block that's M20 x 1.5 and need to tie into 1/2" NPT female thread on the other end, this straight adapter gonna work for that?
Answer by: Customer Support on Sep 5, 2025, 8:06 AM
That's what this fitting handles. One end is male M20 x 1.5 metric thread, the other is female 1/2-14 NPTF. Steel construction, straight profile, 41.1mm overall length. Should drop right into that application without any adapters in between.
Question by: Janet Y on May 28, 2025, 9:53 PM
Will this fitting hold up okay in a hydraulic system for a log splitter? Just wanna make sure it's tough enough.
Answer by: Customer Support on May 30, 2025, 4:43 PM
It's made from steel, so it should be plenty durable for most hydraulic applications, including log splitters.
Question by: Cody C on Nov 10, 2025, 11:48 AM
got a hose end that’s M20 x 1.5 and my valve port is 1/2 npt. is this the right adapter to tie those together?
Answer by: Customer Support on Nov 12, 2025, 6:58 AM
For converting between those two thread types, it matches what you described: one side is male Metric M20 x 1.5 and the other side is female 1/2 - 14 NPTF.
