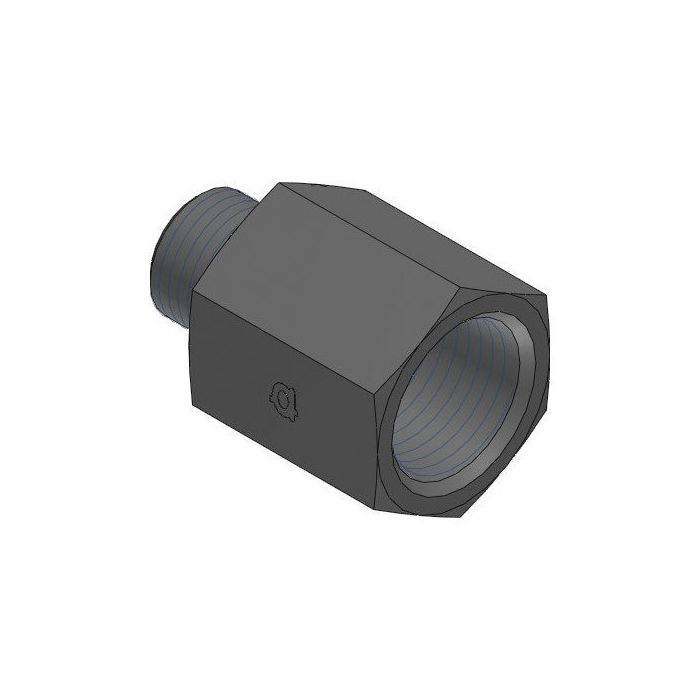

main product photo

Male Metric X Female Npt

Ask A Question

Description & Features

This Adaptall America fitting, SKU 9235-22-04, is a Male Metric X Female Npt adapter, constructed of steel for durability.

The Adaptall fitting features a straight shape, with a Side 1 M22 x 1.5 male metric connection with a 22mm size, and a Side 2 1/4" female NPT connection. The Side 1 wrench flat measures 27mm, and the L length is 18.2mm.

SKU: 9235-22-04

Supplier Part Number (MPN): 9235-22-04

Specifications

Brand
adapt-all
Connection Size 1
L22
Connection Size 2
1/4 in
Connection Type
FNPT, Male Metric
Connection Type 1
Male Metric
Connection Type 2
Female NPT
Dimension Standards
ANSI B1.20.3, DIN 7631
Dimensions
39 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9235 Series
Thread Size
M22x1.5 x 1/4-18

Product Questions & Answers (3)

Question by: Bobby E on Mar 22, 2026, 5:31 PM
trying to hook a metric port to a 1/4 npt line, is this the right adapter?
Answer by: Customer Support on Mar 24, 2026, 6:09 AM
For that kind of mix-and-match, this adapter gives you an M22 x 1.5 male metric on one side and a 1/4 - 18 NPTF female on the other, in a straight steel fitting.
Question by: Hubert T on Mar 31, 2026, 11:51 AM
Got a metric port on a hydraulic block and need to tie into a 1/4" NPT line, this the right fitting to make that happen?
Answer by: Customer Support on Apr 1, 2026, 9:09 PM
That's what this adapter is for. Side one is M22 x 1.5 male metric, and side two is 1/4" female NPT, so it bridges those two thread types in a straight, compact package. The steel construction holds up well in hydraulic hydraulic connections applications, and at 18.2mm in length it keeps things tight without adding much bulk.
Question by: Neal H on Sep 15, 2025, 7:41 PM
What size wrench do I need for the M22 side?
Answer by: Customer Support on Sep 16, 2025, 9:30 PM
The wrench flat on the M22 side of this fitting is 27mm.
