Male Metric X Female Npt

Description & Features

This straight hydraulic adapter from Adaptall America connects an M27 x 2.0 male metric thread on one end to a 3/4-14 NPTF female thread on the other, making it a reliable solution for joining metric and NPT-threaded components in hydraulic systems. Constructed from steel, it offers the durability needed for high-pressure industrial applications.

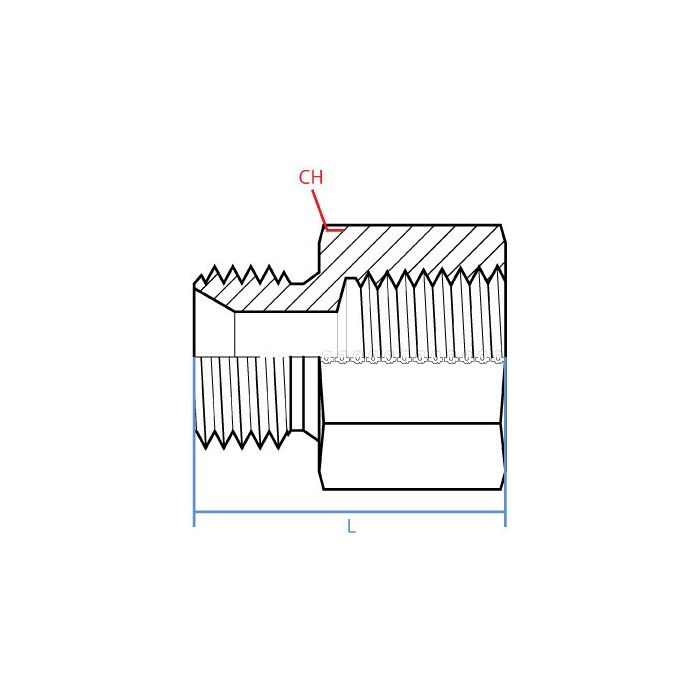

The Male Metric X Female Npt adapter measures 49.4mm in length with a 35mm wrench width, supporting straightforward installation with standard tooling. Its straight configuration suits inline connections where a direct thread transition between metric and NPT standards is required.

SKU: 9235-27-12

Supplier Part Number (MPN): 9235-27-12

Specifications

Brand adapt-all	Connection Size 2 3/4 in	Connection Type FNPT, Male Metric	Connection Type 1 Male Metric	Connection Type 2 Female NPT	Dimension Standards ANSI B1.20.3, DIN 7631	Dimensions 49 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 35 mm	Material Steel	Material Construction Carbon Steel	Series 9235 Series	Thread Size 3/4-14 x M27x2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
9235-10-02		1/8 in	1/8-27 x M10x1	16 mm
9235-10-04		1/4 in	1/4-18 x M10x1	19 mm
9235-12-02	L12	1/8 in	M12x1.5 x 1/8-27	16 mm
9235-14-06	14 mm	3/8 in	M14x1.5 x 3/8-18	22 mm
9235-18-04	18 mm	1/4 in	M18x1.5 x 1/4-18
9235-18-08	18 mm	1/2 in	1/2-14 x M18x1.5
9235-20-06	20 mm	3/8 in	M20x1.5 x 3/8-18
9235-20-08	20 mm	1/2 in	M20x1.5 x 1/2-14
9235-22-04	L22	1/4 in	M22x1.5 x 1/4-18	27 mm
9235-22-12	L22	3/4 in	M22x1.5 x 3/4-14
9235-24-12		3/4 in	M24x1.5 x 3/4-14
9235-33-16		1 in	M33x2 x 1-11-1/2	41 mm

Product Questions & Answers (3)

Question by: Todd B on Jan 10, 2026, 8:11 PM

Will this adapter hold up if I'm using it in a high-pressure system?

Answer by: Customer Support on Jan 12, 2026, 6:42 AM

Constructed from steel, this adapter is durable enough for use in high-pressure industrial applications.

Question by: Hugh E on Mar 1, 2026, 4:57 PM

Got an M27 x 2.0 metric fitting on a hydraulic line and need to tie into a 3/4 NPT female port, this adapter do that job?

Answer by: Customer Support on Mar 3, 2026, 6:22 AM

That's what this one's built for. One end is M27 x 2.0 male metric, the other is 3/4-14 NPTF female, so it bridges those two thread standards in a straight inline connection. Steel construction holds up well in high-pressure industrial setups, and at 49.4mm long with a 35mm wrench width, it installs clean with standard tooling. No modifications needed if your threads match up on both ends.

Question by: Wes J on Feb 16, 2026, 2:21 PM

got a hose end that’s M27 x 2.0 male and the valve port is 3/4-14 NPTF. is this the right adapter to tie those together?

Answer by: Customer Support on Feb 18, 2026, 6:42 AM

For that exact thread combo, it’s a straight steel adapter with an M27 x 2.0 male metric end and a 3/4-14 NPTF female end, so it’s meant to join those two standards in one inline connection.
