Male Metric X Female Npt

Description & Features

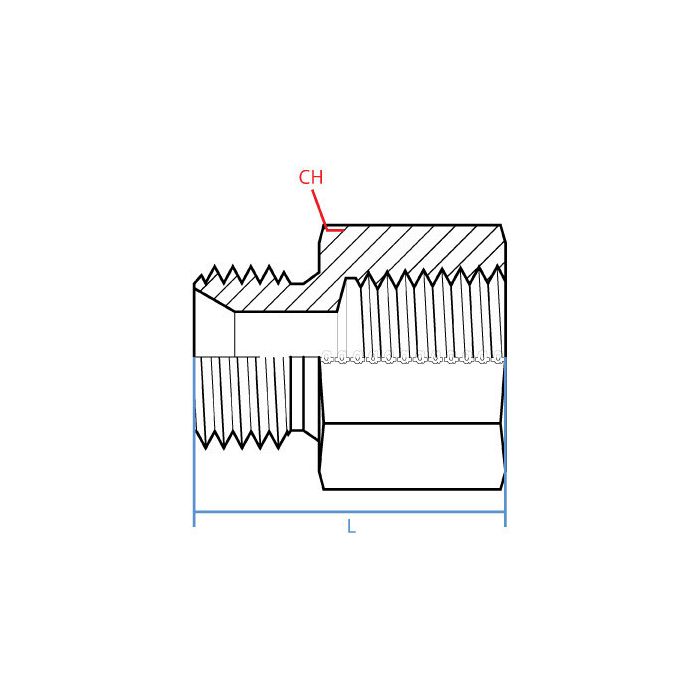

Designed for straight-line connections between metric and NPT threaded ports, this steel Male Metric X Female Npt adapter from Adaptall bridges an M33 x 2.0 male metric thread to a 1 in. – 11.5 NPTF female port. The straight configuration keeps the connection compact and in-line, making it well suited for hydraulic circuit assemblies where thread type conversion is required without angular offset.

Machined from steel for durability in demanding hydraulic environments, the adapter measures 51mm in length with a 41mm across the wrench flats for secure installation. The M33 side 1 and 1 in. NPT side 2 pairing accommodates a common cross-standard connection point found in mixed-specification hydraulic systems.

SKU: 9235-33-16

Supplier Part Number (MPN): 9235-33-16

Specifications

CH Width 41mm	L Length 51mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M33 X 2.0	Side 1 Gender M	Side 1 Size 33mm	Side 1 Type Metric	Side 2 Callout 1 - 11.5 NPTF	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9235-33-16	Product Weight 0.55 lbs

Product Questions & Answers (2)

Question by: Merle S on Nov 7, 2025, 1:35 PM

So this thing goes from metric to NPT, right? Just wanna make sure I'm understanding it correctly.

Answer by: Customer Support on Nov 8, 2025, 1:42 PM

That's right, it's designed to connect a M33 x 2.0 male metric thread to a 1 in. – 11.5 NPTF female port. It's a straight adapter for in-line connections.

Question by: Neil M on Sep 24, 2025, 10:09 AM

got a port that’s M33 x 2.0 male on one side and i need to land it into a 1 inch nptf female port. is this the right adapter?

Answer by: Customer Support on Sep 25, 2025, 8:05 PM

For a straight thread conversion like that, this adapter is set up exactly for M33 x 2.0 male on side 1 to a 1 in. 11.5 NPTF female on side 2, so it bridges those two standards in-line.
