Komatsu Male Union 18Mm X 1.5

Description & Features

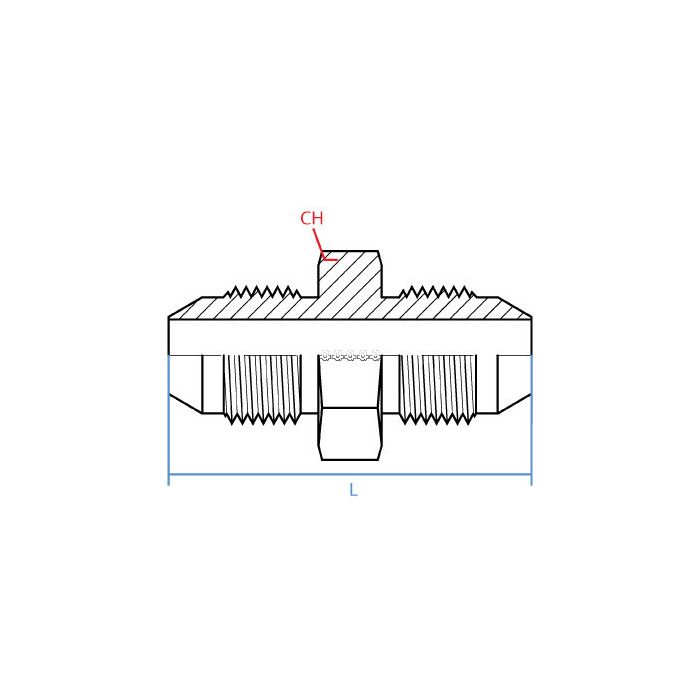

Manufactured from steel in a straight configuration, this union connects two M18 x 1.5 Komatsu-threaded male ports in a single inline assembly. Both ends share the same thread callout and gender, making it well-suited for symmetrical hydraulic line connections where a union fitting is required. The fitting measures 45.7mm in overall length with a 24mm wrench-flat width, allowing for standard tooling during installation and removal.

The Komatsu Male Union 18Mm X 1.5 is sourced from Adaptall America, a manufacturer known for a broad range of hydraulic adapters and fittings used in heavy equipment and industrial hydraulic circuits.

SKU: 9236-18-18

Supplier Part Number (MPN): 9236-18-18

Alternate Part Numbers: C1GB54, MI-07713336, MINO-03671X00316

Specifications

CH Width 24mm	L Length 45.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size 18mm	Side 1 Type Komatsu	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Komatsu	Alternate Part Numbers Alternate Part Number C1GB54, Alternate Part Number MI-07713336, Alternate Part Number MINO-03671X00316	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9236-18-18	Product Weight 0.15 lbs

Product Questions & Answers (1)

Question by: Melvin P on Nov 1, 2025, 6:31 PM

got a Komatsu port on both ends of a manifold block and need a straight union to connect them up -- this the right part for that?

Answer by: Customer Support on Nov 2, 2025, 8:43 PM

For back-to-back Komatsu male connections running M18 x 1.5 threads on both sides, that's exactly what this union is built for. Both ends are male Komatsu at 18mm with a 1.5 pitch, so it bridges two female Komatsu ports in a straight line. The body is steel and comes in at 45.7mm long with a 24mm wrench flat, so make sure you've got enough clearance in the block to get a wrench on it.
