Komatsu Male Union 24Mm X 1.5

Description & Features

Constructed from steel in a straight configuration, this union fitting connects two Komatsu-threaded hydraulic lines using matching M24 x 1.5 male ends on both sides. At 56mm in length with a 28.5mm wrench width, it suits inline connections where a consistent Komatsu thread standard is required on each port.

The Komatsu Male Union 24Mm X 1.5 is manufactured by Adaptall and is well suited for use in heavy equipment and industrial hydraulic circuits that specify Komatsu-pattern fittings. The symmetrical male-to-male design simplifies assembly in applications where both mating components carry female Komatsu ports.

SKU: 9236-24-24

Supplier Part Number (MPN): 9236-24-24

Specifications

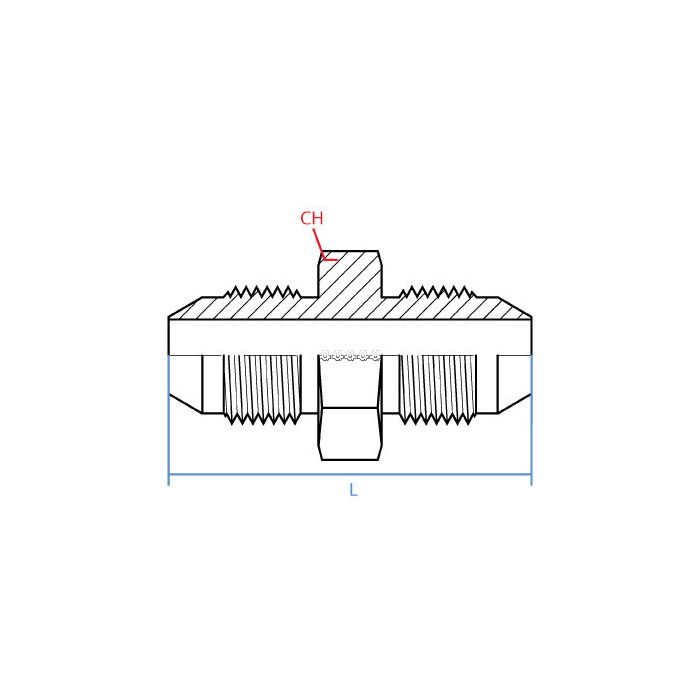

CH Width 28.5mm	L Length 56mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size 24mm	Side 1 Type Komatsu	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size 24mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9236-24-24	Product Weight 0.30 lbs

Product Questions & Answers (1)

Question by: Tommy R on Dec 11, 2025, 7:15 AM

Both ports on my receiver block are female Komatsu, and I need to tie two lines together inline. This union gonna work for that?

Answer by: Customer Support on Dec 13, 2025, 6:00 AM

Straight inline connections like that are exactly what this fitting handles. Both ends are M24 x 1.5 male Komatsu, so as long as your block ports are female Komatsu at that same thread size, you've got a match on both sides. Steel construction, 56mm overall length, and a 28.5mm wrench flat to torque it down properly.
