Male Jic X Male Komatsu Union

Ask A Question

Description & Features

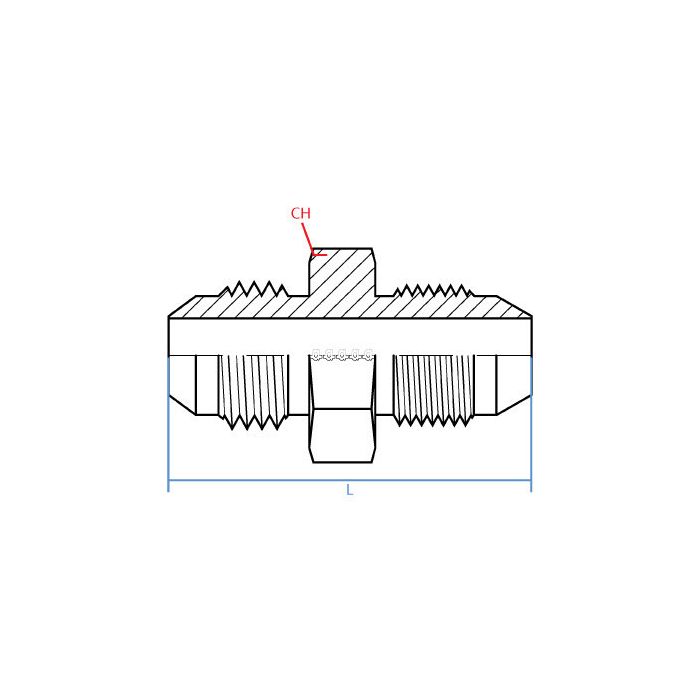

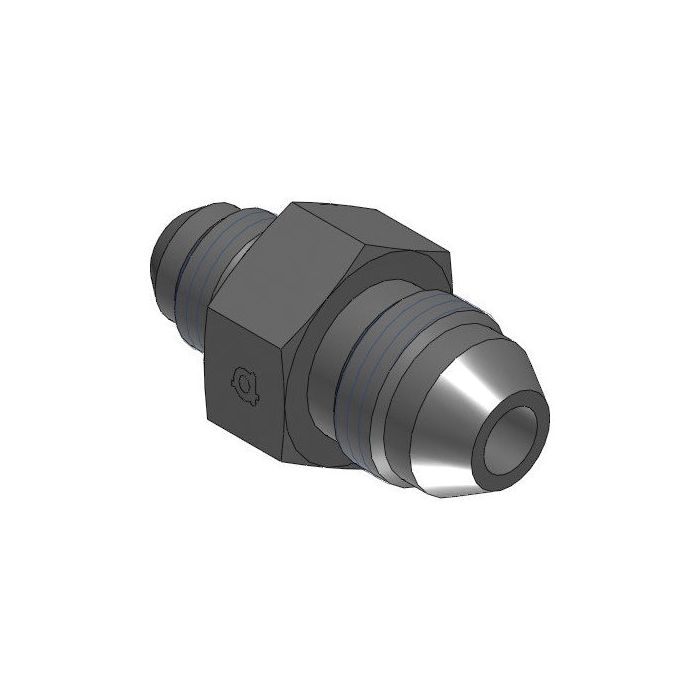

Constructed from steel in a straight configuration, this union connects a 9/16-18 UNF male JIC fitting on one end to a male Komatsu port on the other, bridging two common but incompatible thread standards in a single compact body. The JIC side accommodates a 3/8" line, while the Komatsu side carries an 18mm thread with a 20mm callout. Overall length is 39.8mm, with a 19mm wrench flat for installation.

The Male JIC X Male Komatsu Union is an Adaptall product, suited for hydraulic circuits where JIC-threaded lines connect to Komatsu-ported equipment. The straight geometry keeps routing direct, and steel construction provides the durability expected in hydraulic service environments.

SKU: 9237-06-18

Supplier Part Number (MPN): 9237-06-18

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
18 mm
Connection Type
Male JIC, Male Komatsu
Connection Type 1
Male JIC
Connection Type 2
Male Komatsu
Dimension Standards
SAE J514
Dimensions
43 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9237 Series
Thread Size
9/16-18 x M18x1.5

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Gary M on Feb 17, 2026, 11:33 AM
Got a Komatsu machine with a JIC line running to it, this union piece the right call for tying those two together?
Answer by: Customer Support on Feb 18, 2026, 4:39 PM
That's what it's built for. One end is a 9/16-18 UNF male JIC to handle a 3/8" line, and the other is a male Komatsu port with an 18mm thread. The straight body keeps things clean and direct without any angle routing. Steel construction holds up in hydraulic service without any fuss.
Question by: Jerry R on Jul 11, 2025, 8:01 PM
got a hose end that’s 9/16-18 JIC for a 3/8 line, will this union let me hook it to a Komatsu port?
Answer by: Customer Support on Jul 13, 2025, 2:48 PM
For connecting those two standards, it bridges a male 9/16-18 UNF JIC end sized for a 3/8 inch line to a male Komatsu end with an 18 mm thread and a 20 mm callout, all in a straight steel union.
