Male Jic X Male Komatsu Union

Description & Features

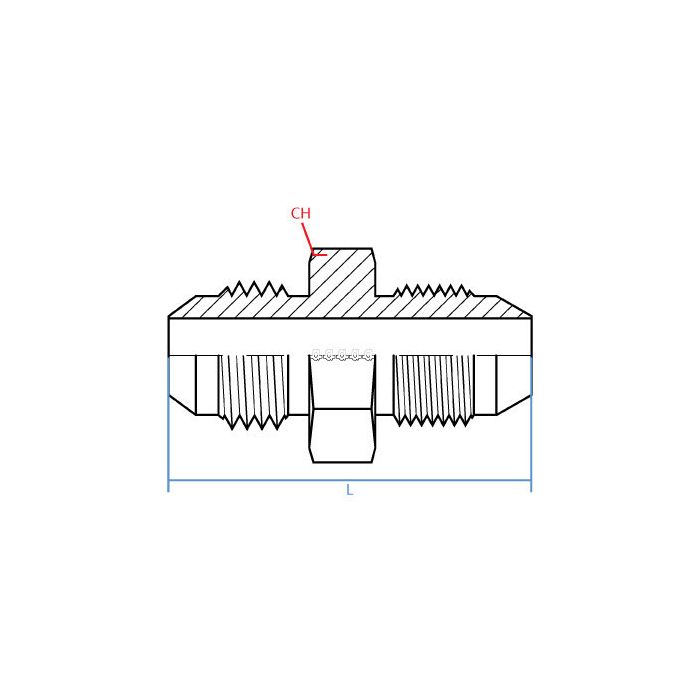

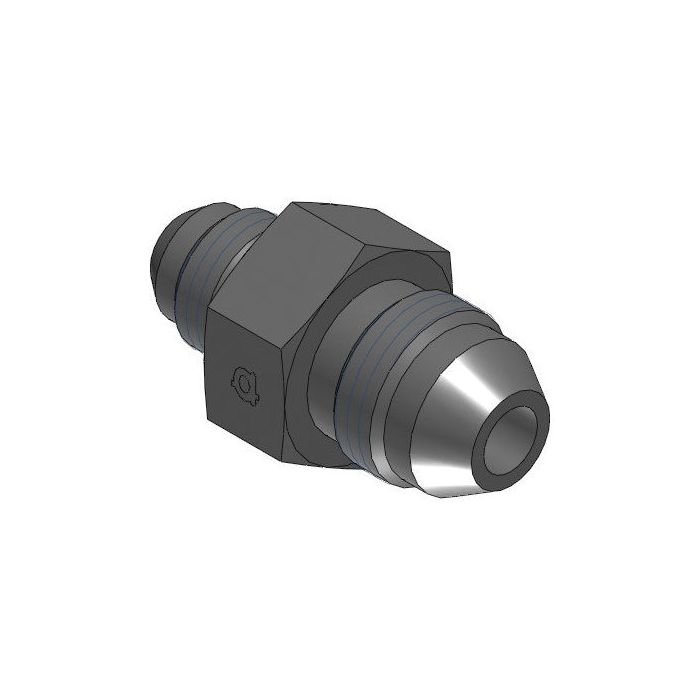

Manufactured from steel in a straight configuration, this Male JIC X Male Komatsu Union is designed to connect a 1/2" JIC male fitting (3/4-16 UNF thread) to a 22mm Komatsu male port. With an overall length of 50.8mm and a 27mm wrench width, it provides a compact, reliable union between these two distinct thread standards commonly found in heavy equipment hydraulic circuits.

Sourced from Adaptall, this fitting is well-suited for hydraulic maintenance and repair work on Komatsu equipment where a direct JIC-to-Komatsu male-to-male connection is required. The steel construction supports use in demanding industrial hydraulic environments.

SKU: 9237-08-22

Supplier Part Number (MPN): 9237-08-22

Alternate Part Numbers: MI-03072682, MINO-03671J03198

Specifications

Brand adapt-all	Connection Size 1 1/2 in	Connection Size 2 22 mm	Connection Type Male JIC, Male Komatsu	Connection Type 1 Male JIC	Connection Type 2 Male Komatsu	Dimension Standards SAE J514	Dimensions 51.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 9237 Series	Thread Size M22x1.5 x 3/4-16

Product Questions & Answers (3)

Question by: Neil P on Aug 10, 2025, 7:01 PM

Got a Komatsu machine that needs a JIC line hooked straight into a male Komatsu port, this union do that without needing extra adapters in between?

Answer by: Customer Support on Aug 12, 2025, 6:54 AM

That's exactly what it's built for. One end is a 1/2" JIC male fitting on a 3/4-16 UNF thread, and the other is a 22mm male Komatsu port connection. Both sides are male, so you're going straight fitting to port without stacking additional adapters. Steel construction, straight configuration, and at just under 51mm long it keeps things compact in tight spaces around hydraulic circuits on Komatsu equipment.

Question by: Duane C on Jan 9, 2026, 6:36 PM

Hey, will this here fitting hook up a JIC to a Komatsu fitting alright?

Answer by: Customer Support on Jan 11, 2026, 6:02 AM

This male union is indeed what you need to connect a 1/2" JIC male fitting to a 22mm Komatsu male port.

Question by: Tommy W on Oct 20, 2025, 11:35 AM

got a Komatsu port that’s 22mm, will this union let me hook it straight to a 1/2in JIC hose end?

Answer by: Customer Support on Oct 21, 2025, 2:06 PM

For a direct male to male hookup, it bridges a 1/2 inch JIC male with 3/4-16 UNF threads on one side to a 22 mm Komatsu male port on the other, all in a straight steel union.
