Male Jic X Male Komatsu Union

Description & Features

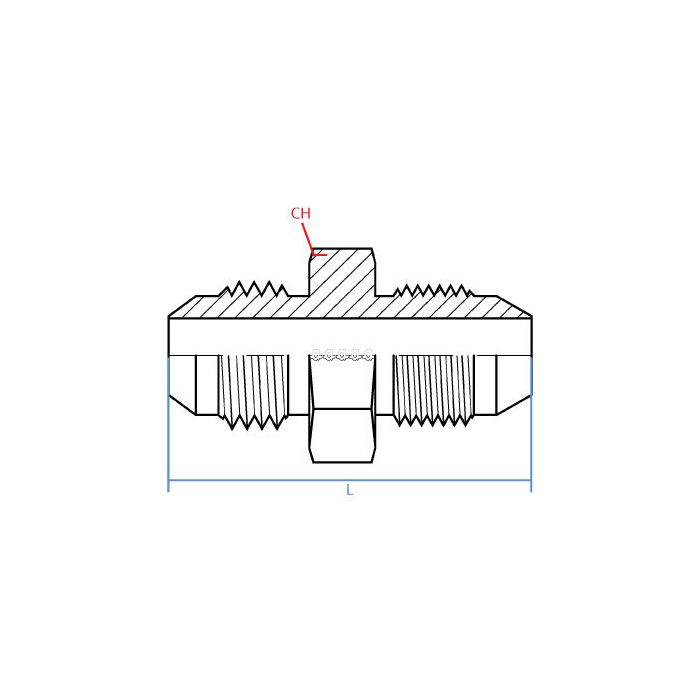

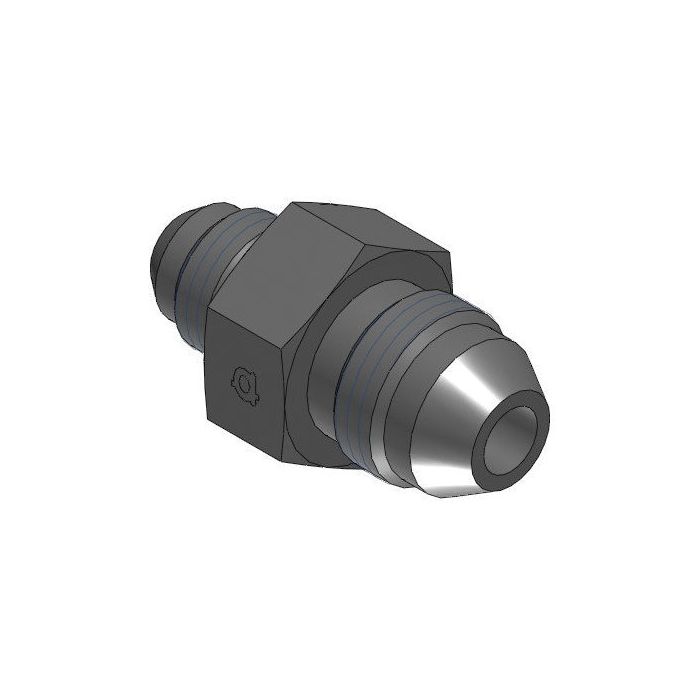

Constructed from steel in a straight configuration, this Male Jic X Male Komatsu Union is designed to connect a 1-5/16-12 UN male JIC fitting on one end to a 22mm male Komatsu port on the other. The union measures 73.6mm in length with a 38mm across-flats width, making it a compact and direct solution for joining hydraulic lines where these two thread standards meet.

Manufactured by Adaptall, this adapter suits mobile hydraulic equipment and construction machinery applications where Komatsu-threaded ports are common. The steel construction supports use in demanding hydraulic circuits where durability and thread integrity are essential.

SKU: 9237-16-33

Supplier Part Number (MPN): 9237-16-33

Specifications

Brand adapt-all	Connection Size 1 1 in	Connection Type Male JIC, Male Komatsu	Connection Type 1 Male JIC	Connection Type 2 Male Komatsu	Dimension Standards SAE J514	Dimensions 68.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9237 Series	Thread Size 1-5/16-12 x M33x1.5

Product Questions & Answers (1)

Question by: Lyle B on Mar 21, 2026, 9:00 AM

Got a Komatsu excavator with a 22mm port and need to tie into a JIC line, this union gonna bridge that gap without needing extra fittings in between?

Answer by: Customer Support on Mar 23, 2026, 6:45 AM

That's what this piece is built for. One end threads onto a 1-5/16-12 UN male JIC fitting and the other connects directly to a 22mm male Komatsu port, so you get a straight, single-adapter solution with nothing extra in the chain. At 73.6mm long and 38mm across the flats, it's compact enough to fit in tighter spots on mobile equipment without a lot of fuss.
