Male Jic X Female Bspp Swivel

Description & Features

The Adaptall America Male Jic X Female Bspp Swivel demonstrates precise design and high performance in industrial applications. This straight adapter, crafted from premium-grade steel, guarantees durability and dependable connections.

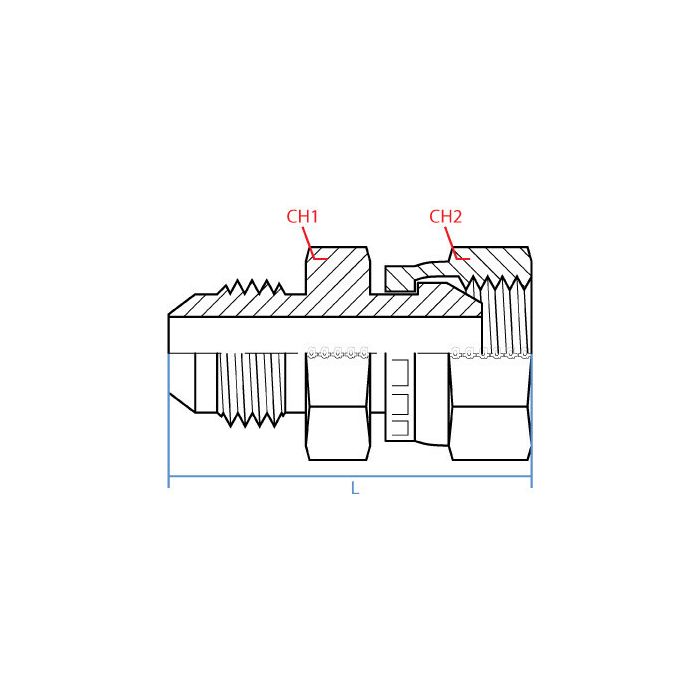

Featuring a male JIC thread of 7/16 - 20 UNF and a female BSPP 1/8" connection, it ensures optimal compatibility. The dimensions include a CH1 width of 13mm and CH2 width of 14mm, with an overall length of 34mm, accommodating various technical specifications.

Its accuracy and reliability make the Male Jic X Female Bspp Swivel a suitable component for diverse industrial setups.

Supplier Part Number: 9240-04-02

Specifications

Connection Size 1 1/4 in	Connection Size 2 1/8 in	Connection Type Female BSP Swivel, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female BSPP Swivel	Dimension Standards BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514	Dimensions 33.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9240 Series	Thread Size 7/16-20 x 1/8-28

Product Questions & Answers (3)

Question by: Wade D on Oct 25, 2025, 10:26 AM

Will this here fitting work with a hydraulic setup that's using JIC on one side and BSPP on the other, or am I gonna need somethin' else?

Answer by: Customer Support on Oct 26, 2025, 10:33 AM

This Adaptall adapter is designed to connect a male JIC fitting to a female BSPP fitting. It's got the right threads for both sides, so it should do the trick for your hydraulic setup.

Question by: Terry O on Apr 1, 2026, 8:55 AM

Got a line running 1/4" JIC on one end and need to tie into a BSPP port on a piece of imported equipment. This the right fitting to make that happen?

Answer by: Customer Support on Apr 3, 2026, 7:40 AM

Yeah, that'll do the job. One end is a 7/16-20 UNF male JIC thread, which is standard for 1/4" JIC lines, and the other is a 1/8" female BSPP swivel. The swivel end gives you a little movement when you're torquing things down, which makes it easier to get a clean connection without stressing the line. Steel construction, straight configuration, so it's a direct in-line adapter with no angle to account for.

Question by: Troy M on Oct 10, 2025, 8:26 PM

got a hose end that’s 7/16-20 JIC male, will this adapter mate up with it?

Answer by: Customer Support on Oct 12, 2025, 9:34 AM

Side 1 is a male JIC in 7/16 - 20 UNF (1/4 inch size). The other side is a female BSPP swivel in 1/8 inch size, so it is meant to transition from that JIC thread to a BSPP connection.
