Male Jic X Female Bspp Swivel

Ask A Question

Description & Features

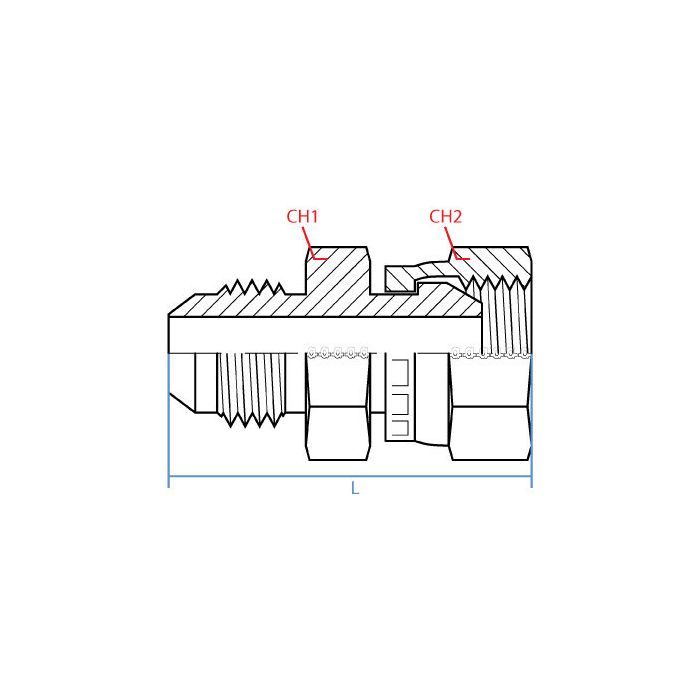

The Adaptall America Male Jic X Female Bspp Swivel connects a 3/8" Jic male end to a 1/4" Bspp female end with precision.

Constructed from durable steel, this straight adapter ensures a robust and reliable connection for various industrial applications. Its 9/16 - 18 UNF thread size on Side 1 and 19mm width on both sides (CH1 and CH2) are designed for optimal performance.

With a length of 36.8mm, it features a straightforward design without unnecessary components like batteries or cases, making it an efficient choice for professionals seeking dependable connection solutions.

Supplier Part Number: 9240-06-04

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Female BSP Swivel, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female BSPP Swivel
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
38 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
9240 Series
Thread Size
9/16-18 x 1/4-19

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Lee S on May 26, 2025, 6:38 AM
Got a line running 3/8" JIC on one end and need to tie into a 1/4" BSPP port, this straight adapter gonna work for that?
Answer by: Customer Support on May 27, 2025, 7:39 AM
That's what this fitting is built for. One end is a 3/8" JIC male with a 9/16-18 UNF thread, and the other side is a 1/4" BSPP female swivel. Steel construction, straight configuration, 36.8mm long. If your line and port match those specs, you're good to go.
Question by: Bobby W on Dec 14, 2025, 8:04 AM
Will this here fitting hold up to regular use in a hydraulic setup?
Answer by: Customer Support on Dec 15, 2025, 6:46 PM
Constructed from steel, this adapter is designed for robust and reliable connections in industrial applications, so it should definitely hold up.
Question by: Ricky H on Jan 28, 2026, 6:54 PM
got a hose with a 3/8 jic male on it and i need to hook into a 1/4 bspp port, is this the right adapter
Answer by: Customer Support on Jan 30, 2026, 8:20 AM
For that hookup, it matches a 3/8 inch JIC male on one side and a 1/4 inch BSPP female swivel on the other, in a straight steel adapter.
