Male Jic X Female Bspp Swivel

Ask A Question

Description & Features

Engineered for robust industrial applications, the Male JIC X Female BSPP Swivel fitting is crafted from high-quality steel, ensuring durability and reliability in demanding environments. The fitting features a straight design, providing seamless integration into hydraulic systems. On one side, it incorporates a 9/16 - 18 UNF male JIC connection, measuring 3/8", while the other side presents a 1/2" female BSPP swivel connection, allowing for flexible and secure connections. This versatility makes it suitable for various hydraulic applications, where precision and efficiency are critical.

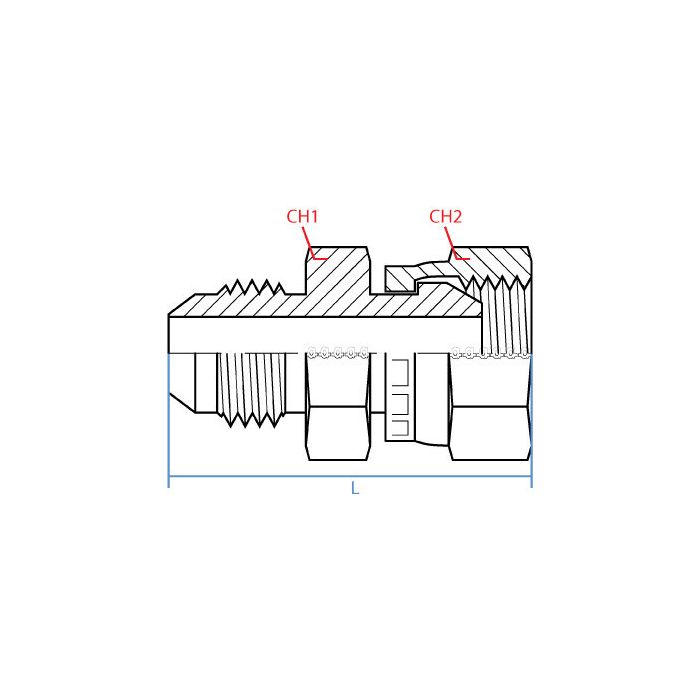

With an Adaptall Ch1 width of 19mm and a Ch2 width of 25.5mm, the fitting is designed for optimal performance and ease of installation. The total length of 40.5mm further enhances its adaptability in compact spaces. This part is a reliable choice for industry professionals seeking robust and adaptable hydraulic connection solutions.

SKU: 9240-06-08

Supplier Part Number (MPN): 9240-06-08

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Female BSP Swivel, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female BSPP Swivel
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
41.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9240 Series
Thread Size
1/2-14 x 9/16-18

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Gene H on Aug 2, 2025, 7:10 AM
Reckon this fitting will hold up okay in a hydraulic system running around 2000 psi?
Answer by: Customer Support on Aug 4, 2025, 8:54 AM
This steel fitting is engineered to withstand robust industrial applications, so it should perform well within a 2000 psi hydraulic system.
Question by: Melvin W on Apr 6, 2025, 4:13 PM
trying to replace a fitting, is this one the straight adapter that goes from 9/16-18 UNF male JIC (3/8) over to a 1/2 female BSPP swivel?
Answer by: Customer Support on Apr 8, 2025, 7:11 AM
For a fit check, the connections on this part are a 9/16-18 UNF male JIC on one side in 3/8 size, and a 1/2 female BSPP swivel on the other side. It is a straight steel fitting.
Question by: Tammy P on Jan 25, 2026, 8:47 PM
Got a line running JIC on one end and BSPP on the other, will this fitting bridge that gap without needing an extra adapter in between?
Answer by: Customer Support on Jan 27, 2026, 8:43 AM
That's exactly what it's built for. One end is a 3/8" male JIC with a 9/16-18 UNF thread, and the other is a 1/2" female BSPP swivel. So yeah, it connects those two standards directly, no additional adapter needed in between.
