Male Jic X Female Bspp Swivel

Ask A Question

Description & Features

This straight steel fitting is a Male JIC X Female BSPP Swivel. It adapts from a 5/8" JIC male connection with 7/8 - 14 UNF threads to a 1/2" female BSPP connection.

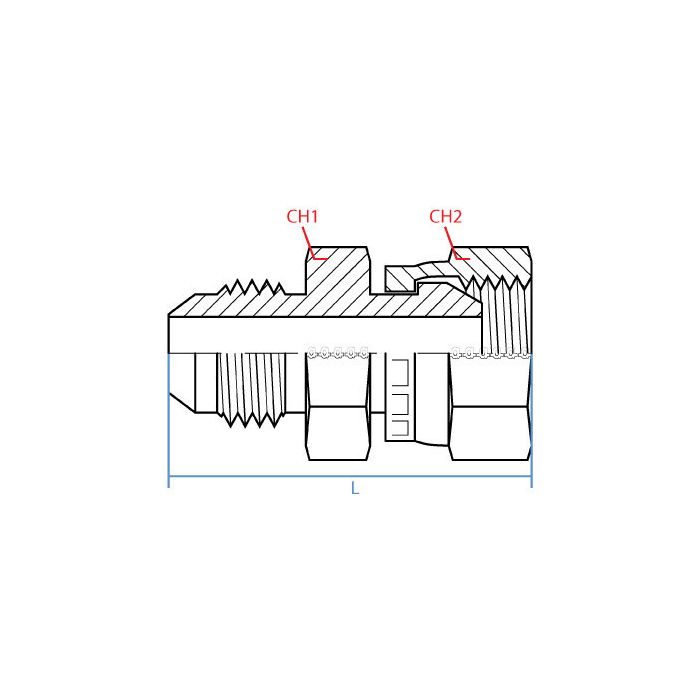

Adaptall Ch1 Width: 25.5mm. Adaptall Ch2 Width: 27mm. Adaptall L Length: 47.3mm.

SKU: 9240-10-08

Supplier Part Number (MPN): 9240-10-08

Specifications

Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Female BSP Swivel, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female BSPP Swivel
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
50 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9240 Series
Thread Size
1/2-14 x 7/8-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Joyce E on Jul 13, 2025, 9:10 PM
trying to hook a 5/8 jic male line to a 1/2 bspp port, is this the right adapter
Answer by: Customer Support on Jul 15, 2025, 4:53 PM
For that combo, it matches up as a straight steel adapter from a 5/8 inch JIC male with 7/8-14 UNF threads over to a 1/2 inch female BSPP swivel.
Question by: Kurt A on Oct 19, 2025, 11:34 AM
fitting's 47.3mm long, that gonna be enough clearance to thread up in a tight spot without having to reroute the whole line?
Answer by: Customer Support on Oct 21, 2025, 6:17 AM
At just under two inches, that length works fine for most standard inline connections, but tight quarters can vary a lot depending on what's around it. The 25.5mm and 27mm wrench flats give you decent grip for tightening, so you're not fighting the fitting itself. If the space is really cramped, the bigger concern is usually getting a wrench on it rather than the body length causing a conflict.
