Male Jic X Female Bspp Swivel

Description & Features

Crafted from durable steel, the Male Jic X Female Bspp Swivel is designed for robust industrial applications, ensuring reliable performance in demanding environments. This connector features a straight shape with a 1-5/8 - 12 UN male JIC connection on one side and a female BSPP connection on the other, both sized at 1-1/4 inches. These specifications make it highly compatible with various hydraulic systems requiring precision and strength.

With an overall length of 64.8mm, the swivel is engineered for seamless integration into existing setups, offering a dependable solution for fluid transfer. The component's width measures 46mm on one side and 50mm on the other, optimizing it for specific installation requirements. This product is part of the Adaptall brand, known for quality and precision in hydraulic fittings.

SKU: 9240-20-20

Supplier Part Number (MPN): 9240-20-20

Specifications

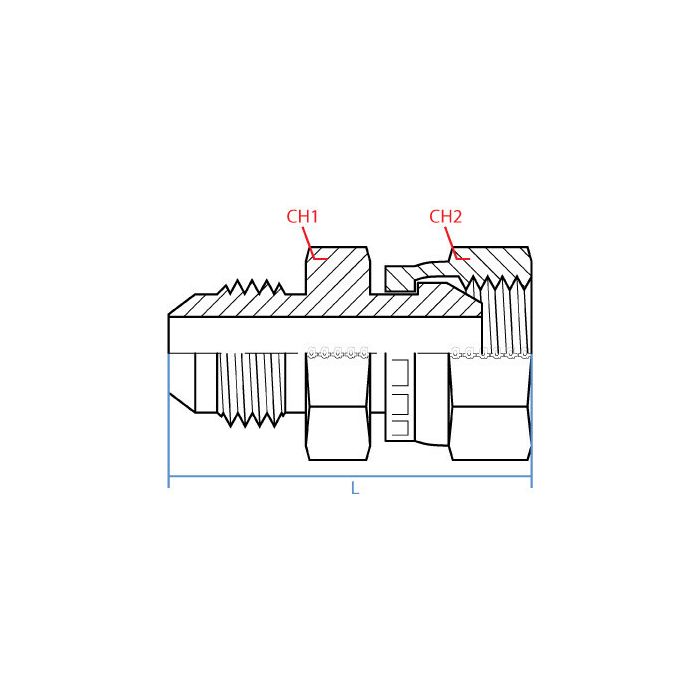

CH1 Width 46mm	CH2 Width 50mm	L Length 64.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9240-20-20	Product Weight 0.95 lbs

Product Questions & Answers (3)

Question by: Kurt F on Feb 14, 2026, 7:44 AM

Got a machine running BSPP ports on one end and JIC fittings on the other, this the kind of adapter that bridges that gap?

Answer by: Customer Support on Feb 15, 2026, 7:49 AM

That's what this fitting does. One side is a 1-1/4 inch male JIC with a 1-5/8 - 12 UN thread, and the other is a 1-1/4 inch female BSPP. So if you've got a hydraulic line or component on each of those two thread standards, this swivel connects them straight through without any additional adapters in between.

Question by: Scott H on May 12, 2025, 4:42 PM

Will this swivel hold up okay in a hydraulic setup that's running pretty much non-stop?

Answer by: Customer Support on May 14, 2025, 7:35 AM

Crafted from steel, this swivel is definitely built to handle demanding industrial applications, so it should provide reliable performance even in continuous-use situations.

Question by: Stan C on Feb 27, 2026, 4:18 PM

got a hose end that’s 1-5/8 - 12 UN JIC male. will this swivel mate up if the other side i need is 1-1/4" BSPP female

Answer by: Customer Support on Feb 28, 2026, 9:47 PM

It’s a straight steel adapter with a 1-5/8 - 12 UN male JIC on one end and a 1-1/4 inch female BSPP swivel on the other, so it matches the connection types and sizes you called out.
