Male Jic X Female Bspp Swivel

Description & Features

Designed for connecting JIC and BSPP threaded lines in a straight configuration, this Male Jic X Female Bspp Swivel is manufactured from steel and built to handle the demands of industrial hydraulic systems. The male JIC side features a 2-1/2–12 UN thread, while the female BSPP swivel end is sized at 2", allowing reliable cross-standard adaptation between imperial and metric hydraulic circuits.

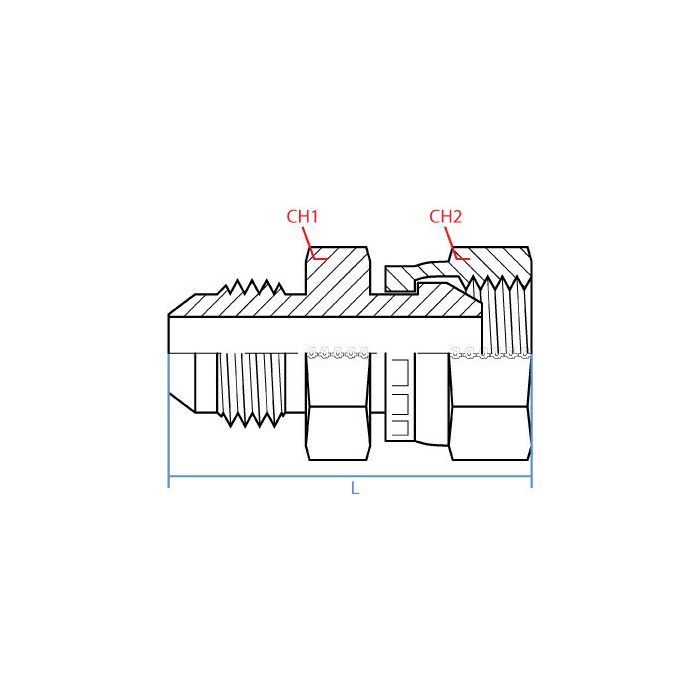

At 84.6mm in overall length with matching 70mm wrench flats on both ends, the fitting is sized for straightforward installation using standard tooling. The swivel female end simplifies assembly by allowing the fitting to be positioned without rotating the connected line, reducing the risk of twisting or stress during make-up. This size class is well suited to high-flow hydraulic applications where large-bore cross-standard connections are required.

SKU: 9240-32-32

Supplier Part Number (MPN): 9240-32-32

Specifications

CH1 Width 70mm	CH2 Width 70mm	L Length 84.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 2-1/2 - 12 UN	Side 1 Gender M	Side 1 Size 2"	Side 1 Type Jic	Side 2 Gender F	Side 2 Size 2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9240-32-32	Product Weight 2.60 lbs

Product Questions & Answers (1)

Question by: Wade S on May 22, 2025, 2:07 PM

i’ve got a 2 inch BSPP port on one side and a JIC line on the other, is this the straight adapter for that?

Answer by: Customer Support on May 24, 2025, 12:26 PM

For tying those two standards together in a straight run, it matches up as a 2 inch female BSPP swivel on one end and a male JIC on the other with a 2-1/2 - 12 UN thread.
