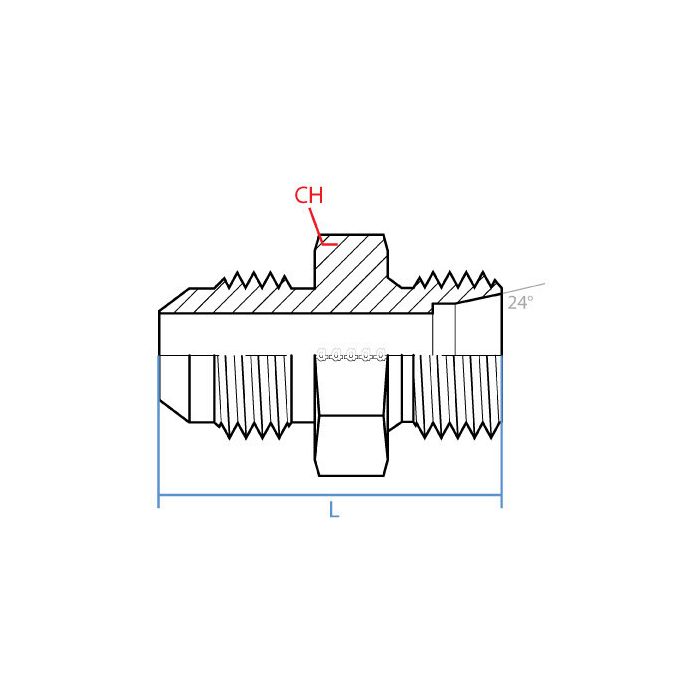

main product photo

Mjic X Jsw Male Tube End

Ask A Question

Description & Features

This Adaptall adapter features a Mjic X Jsw Male Tube End, constructed from durable steel for reliable performance in demanding hydraulic applications. The straight shape facilitates easy connection between different fitting types.

The adapter connects a 3/4" JIC male end (1-1/16 - 12 UN thread) to a 14mm DIN tube male end (L25 SPECIAL size). Its design ensures a secure and leak-free connection.

SKU: 9245-12-25-34

Supplier Part Number (MPN): 9245-12-25-34

Alternate Part Numbers: C1GB55, MI-02116411, MINO-03671J02747

Specifications

Connection Size 1
3/4 in
Connection Size 2
S25
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
JSW Male DIN Tube
Dimension Standards
DIN 2353, SAE J514
Dimensions
53.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
41 mm
Material
Steel
Material Construction
Carbon Steel
Series
9245 Series
Thread Size
1-1/16-12 x M34x1.5

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Neal W on May 2, 2025, 11:40 AM
Will this fit on my Komatsu equipment? I need to connect a JIC fitting to a DIN tube.
Answer by: Customer Support on May 4, 2025, 11:06 AM
This adapter is designed to connect a 3/4" JIC male fitting to a 14mm DIN tube. You'll want to verify those sizes match what's on your Komatsu equipment.
Question by: Terry A on Apr 9, 2025, 5:13 PM
got a 3/4 JIC male fitting on one end of my line and need to tie into a 14mm DIN tube port on the other side, is this the adapter that handles that?
Answer by: Customer Support on Apr 11, 2025, 11:00 AM
That's exactly what this one does. One end is a 3/4 inch male JIC with a 1-1/16-12 UN thread, and the other end is a 14mm male DIN tube end, listed here as the L25 Special designation. Both sides are male, so you'd be threading this into female ports or mating fittings on each end. It's a straight configuration, no angle to it, and the overall length runs 53.5mm with a 41mm wrench flat for tightening. Steel construction throughout.
