main product photo

Male Jic X Male Kobelco

Ask A Question

Description & Features

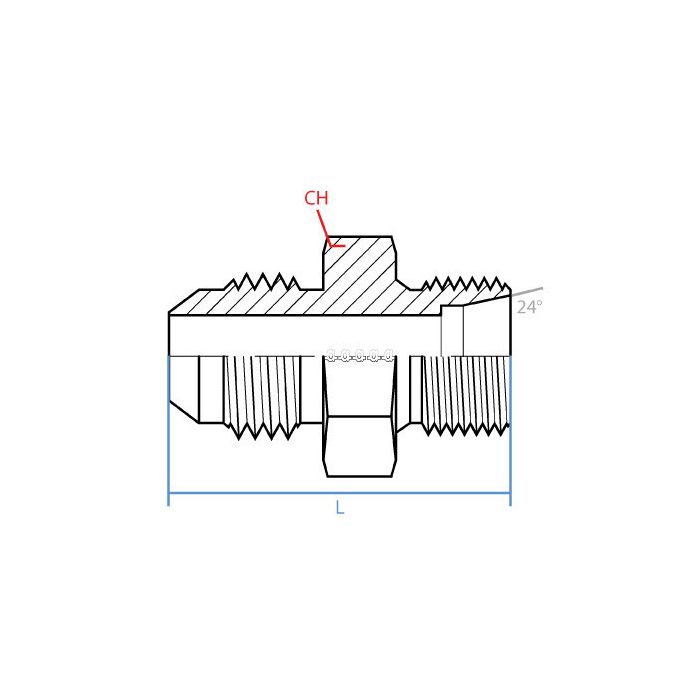

Manufactured from steel in a straight configuration, this adapter connects a 3/4" Male JIC fitting (1-1/16-12 UN thread) to an 18mm Male Kobelco port (L22 Special). The Male JIC x Male Kobelco is suited for hydraulic systems requiring a direct, inline transition between JIC and Kobelco connection standards.

Supplied by Adaptall, this fitting is a practical solution for equipment that uses Kobelco-style ports alongside standard JIC hydraulic lines. The straight body keeps the connection compact with no angular offset.

SKU: 9247-12-22-30

Supplier Part Number (MPN): 9247-12-22-30

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
22 mm
Connection Type
Male JIC, Male Kobelco
Connection Type 1
Male JIC
Connection Type 2
Male Kobelco
Dimension Standards
DIN 235, SAE J514
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9247 Series
Thread Size
1-1/16-12 x M30x1.5

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Hank F on Oct 10, 2025, 12:53 PM
Got a Kobelco excavator with an 18mm port and need to tie it into a standard JIC hydraulic line, this the right fitting for that?
Answer by: Customer Support on Oct 12, 2025, 6:21 AM
That's what this adapter is built for. One end threads into your 18mm Kobelco port using the L22 Special connection, and the other end is a 3/4" Male JIC with a 1-1/16-12 UN thread. Steel construction, straight body, no angle to it. If your JIC line and that Kobelco port are the sizes listed, you're good to go.
Question by: Denise B on Apr 2, 2026, 11:12 AM
trying to hook a 3/4 jic hose up to a kobelco port, is this the right adapter or am i off a size
Answer by: Customer Support on Apr 4, 2026, 6:13 AM
Match it up by the thread and port callouts. Side 1 is a 3/4 inch Male JIC with 1-1/16-12 UN threads, and side 2 is an 18mm Male Kobelco port listed as L22 Special, so it’s meant for that exact JIC-to-Kobelco transition.
