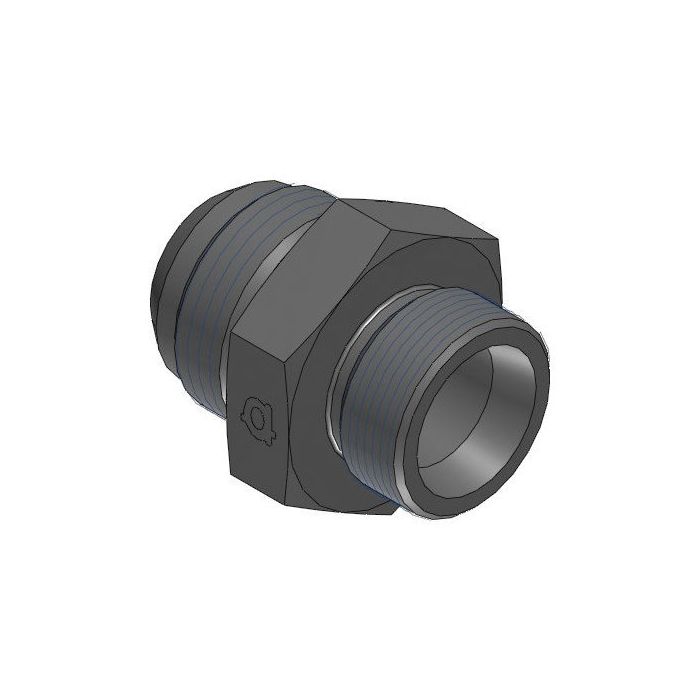

Male Jic X Male Metric Kobelco

Description & Features

The Male Jic X Male Metric Kobelco is designed by Adaptall America to provide reliable and durable connections with its steel construction. This straight-shaped adapter features a 1-5/16 - 12 UN 1-inch Jic male end and a 22mm L28 special Kobelco male end ensuring compatibility with various industrial applications.

With a compact design measuring 41mm in width and 55.9mm in length this adapter offers an efficient solution without compromising space or performance. This part number 9247-16-28-36 is built to meet stringent quality standards.

Supplier Part Number: 9247-16-28-36

Specifications

Brand adapt-all	Connection Size 1 1 in	Connection Type Male JIC, Male Kobelco	Connection Type 1 Male JIC	Connection Type 2 Male Kobelco	Dimension Standards DIN 235, SAE J514	Dimensions 55.9 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 41 mm	Material Steel	Material Construction Carbon Steel	Series 9247 Series	Thread Size 1-5/16-12 x M36x1.5

Product Questions & Answers (1)

Question by: Ross S on Aug 29, 2025, 7:58 PM

Will this here adapter fit a Kobelco excavator?

Answer by: Customer Support on Aug 31, 2025, 6:48 PM

It is specifically designed to fit Kobelco equipment utilizing a 22mm L28 male connection, along with any equipment using a 1-5/16 - 12 UN 1-inch JIC male end.
