Kobelco Tube Plug

Description & Features

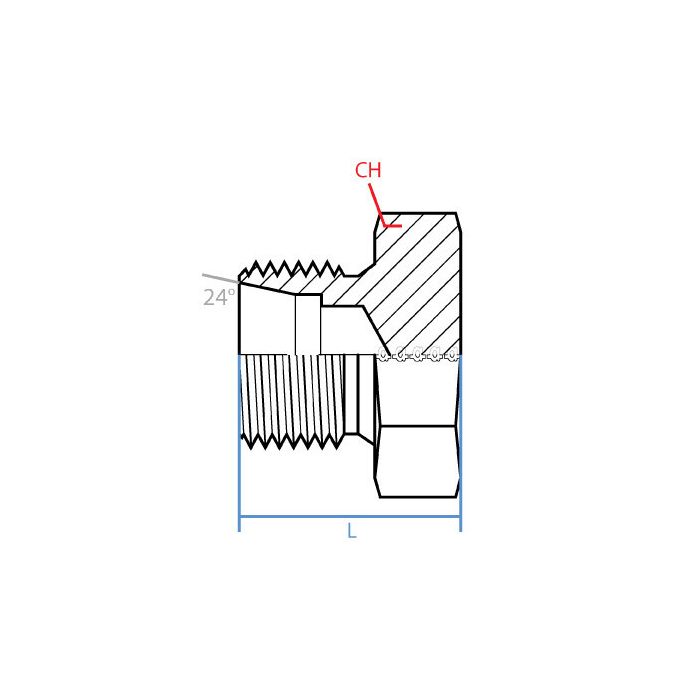

Manufactured from steel, this M30 x 1.5 male threaded plug is designed to terminate or cap Kobelco-type tube connections in hydraulic systems. With a body length of 28.7mm and a wrench width of 38mm, it provides a secure, pressure-rated seal suited for industrial hydraulic circuit maintenance and service applications.

The Kobelco Tube Plug is sourced from Adaptall America and conforms to the L22 Special side specification, making it a direct-fit solution for compatible Kobelco tube port configurations.

SKU: 9248-22-30

Supplier Part Number (MPN): 9248-22-30

Specifications

CH Width 38mm	L Length 28.7mm	Adaptall Material Steel	Adaptall Shape Plug	Side 1 Callout M30 X 1.5	Side 1 Gender M	Side 1 Size L22 SPECIAL	Side 1 Type Kobelco	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9248-22-30	Product Weight 0.40 lbs

Product Questions & Answers (3)

Question by: Lyle S on Mar 31, 2026, 11:54 AM

Will this plug work to cap off a Kobelco tube? I'm working on a hydraulic system, and need to seal it off.

Answer by: Customer Support on Apr 2, 2026, 6:55 AM

This Kobelco tube plug is specifically made to terminate or cap Kobelco-type tube connections.

Question by: Harold W on Jul 29, 2025, 4:33 PM

What size wrench do I need to run this plug in, and how long is the body on it?

Answer by: Customer Support on Jul 31, 2025, 6:54 AM

The wrench flats measure 38mm across, so a 38mm wrench is what you want on hand. Body length comes in at 28.7mm, which keeps it compact enough for tight quarters in most hydraulic panels and valve blocks.

Question by: Ricky F on Dec 20, 2025, 9:45 PM

got a kobelco tube port that needs capped off, is this the right plug or am i gonna fight it

Answer by: Customer Support on Dec 22, 2025, 3:39 PM

For a direct fit, the connection needs to be a Kobelco type tube port with an M30 x 1.5 male thread requirement on the L22 Special side. This plug is built for that exact callout, so it’s meant to terminate or cap that style of Kobelco tube connection.
