Kobelco Swivel Cap

Description & Features

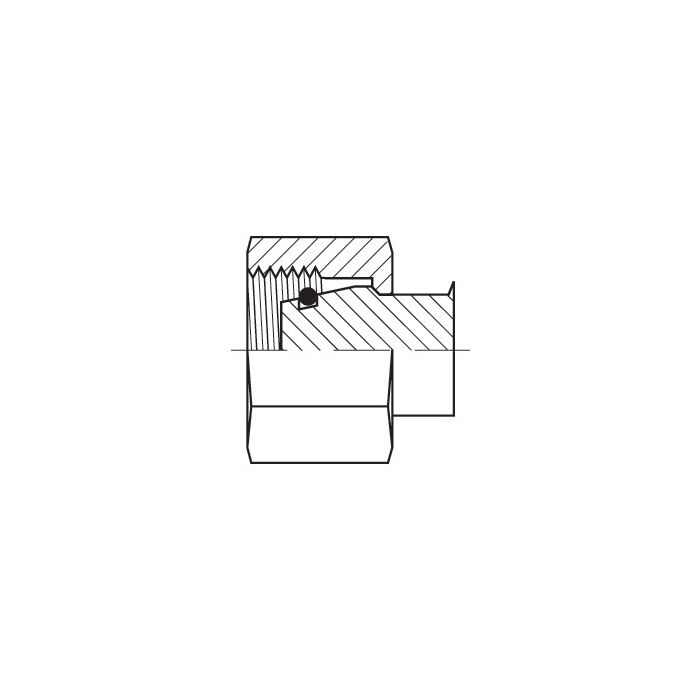

Designed for Kobelco hydraulic applications, this steel swivel cap provides a protective female closure on M45 x 1.5 threaded ports. With a cap width of 51mm and a length of 29.6mm, it is sized for L35 Special port configurations commonly found in Kobelco equipment.

The Kobelco Swivel Cap is manufactured by Adaptall and constructed from steel, offering durability suited to the demands of hydraulic circuit maintenance and port protection. The swivel design allows for easier installation and removal without requiring the line or fitting to rotate.

SKU: 9249-35-45

Supplier Part Number (MPN): 9249-35-45

Specifications

CH Width 51mm	L Length 29.6mm	Adaptall Material Steel	Adaptall Shape Cap	Side 1 Callout M45 X 1.5	Side 1 Gender F	Side 1 Size L35 SPECIAL	Side 1 Type Kobelco	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9249-35-45	Product Weight 0.87 lbs

Product Questions & Answers (1)

Question by: Hugh P on Mar 23, 2026, 1:08 PM

Just want to make sure this cap will fit my Kobelco equipment, the port is L35 Special.

Answer by: Customer Support on Mar 24, 2026, 4:17 PM

This Kobelco swivel cap is designed to fit L35 Special port configurations, as commonly found on Kobelco equipment.
