90*Tube Elb.M.Jic X F.Bspp Sw.

Description & Features

A 90-degree elbow adapter connecting a male JIC fitting on one end to a female BSPP swivel on the other, this steel adapter is designed for hydraulic line routing where a right-angle transition between JIC and BSPP thread standards is required. The male JIC side carries a 3/4-16 UNF thread at 1/2" size, while the female BSPP swivel side is also sized at 1/2" with a 4mm callout, allowing flexible orientation during installation without disturbing the connected line.

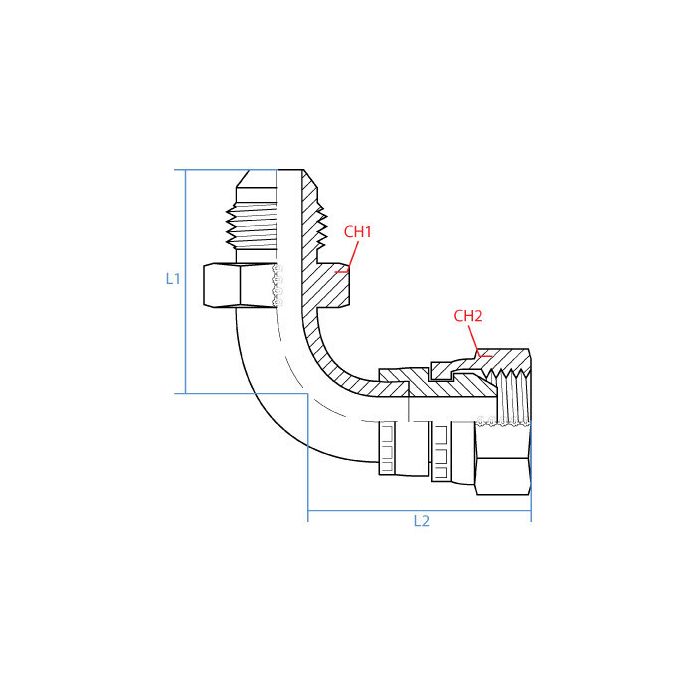

The 90° Tube Elb.M.JIC X F.BSPP Sw. is manufactured by Adaptall and built from steel for durability in demanding hydraulic environments. With a Ch1 wrench width of 20.5mm and Ch2 of 27mm, both L1 and L2 lengths measure 50mm, keeping the overall assembly compact. The swivel feature on the BSPP end simplifies fitting alignment in tight or fixed-line applications.

SKU: 9250-08-08

Supplier Part Number (MPN): 9250-08-08

Alternate Part Numbers: C1FD58, MI-03112395, MINO-03671X10005

Specifications

CH1 Width 20.5mm	CH2 Width 27mm	L1 Length 50mm	L2 Length 50mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 4mm	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number C1FD58, Alternate Part Number MI-03112395, Alternate Part Number MINO-03671X10005	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9250-08-08	Product Weight 0.30 lbs

Product Questions & Answers (3)

Question by: Hank M on Nov 6, 2025, 9:30 AM

Got a hydraulic line that makes a hard right angle turn and one side's JIC while the other hookup is BSPP, this fitting handle that kind of crossover?

Answer by: Customer Support on Nov 8, 2025, 7:56 AM

That's what this one's built for. One end is a male JIC with a 3/4-16 UNF thread at 1/2" size, and the other is a female BSPP swivel also sized at 1/2". The 90-degree elbow gives you that right-angle transition between the two thread standards in a single fitting. Steel construction holds up well in working hydraulic environments, and the overall length on both sides comes in at 50mm each, so it stays pretty compact in tight routing situations.

Question by: Earl O on Apr 23, 2025, 4:00 PM

Reckon this'll hold up alright in a hydraulic system on a farm tractor? We use them pretty hard.

Answer by: Customer Support on Apr 25, 2025, 11:26 AM

This Adaptall elbow is manufactured from steel, so it should offer good durability in demanding hydraulic environments.

Question by: Cheryl M on Dec 30, 2025, 10:43 AM

trying to hook a JIC hose up to a BSPP port, will this elbow do that or am i mixing up threads

Answer by: Customer Support on Dec 31, 2025, 12:55 PM

For that exact mix, it fits the job. One end is a male JIC with a 3/4-16 UNF thread in a 1/2 inch size, and the other end is a 1/2 inch female BSPP swivel, so it bridges JIC to BSPP with a 90 degree turn.
