Female Jis Run Tee

Ask A Question

Description & Features

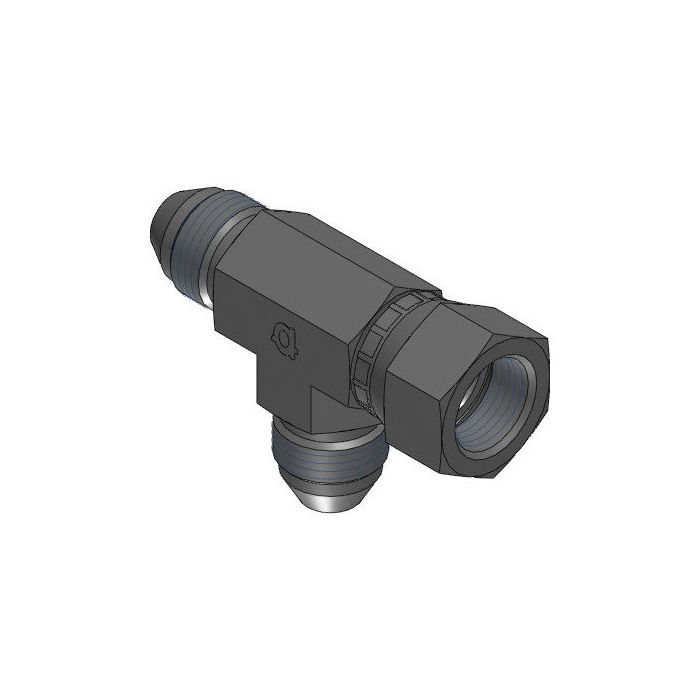

This steel tee fitting features a female JIS run, offering reliable connection in hydraulic systems. It adapts to various configurations with its three ports.

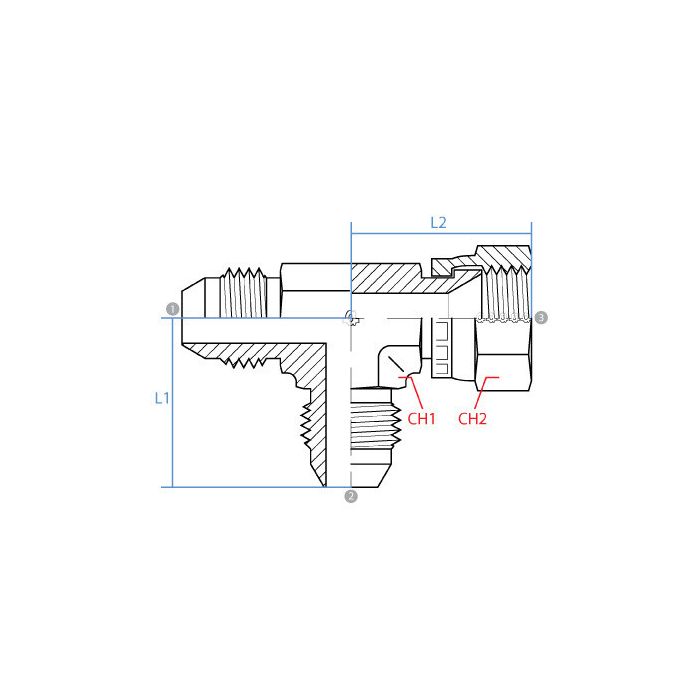

With Adaptall Side 1 and Side 2 sized at 3/8" male JIS (G 3/8 - 19), and Adaptall Side 3 sized at 3/8" female JIS, this Female Jis Run Tee ensures secure and leak-free performance. The tee's robust construction and precise dimensions (Ch1 Width: 19mm, Ch2 Width: 22mm, L1 Length: 31mm, L2 Length: 33mm) make it suitable for demanding industrial applications.

SKU: 9291-06-06-06

Supplier Part Number (MPN): 9291-06-06-06

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Size 3
3/8 in
Connection Type
Female JIS
Connection Type 1
Female JIS
Connection Type 2
Female JIS
Connection Type 3
Female JIS
Dimension Standards
JIS B 0202
Dimensions
65.5 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Hex Size
19 x 22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9291 Series
Thread Size
3/8-19

Product Questions & Answers (3)

Question by: Jean M on Aug 19, 2025, 6:46 PM
trying to tee off a 3/8 jis line, what are the thread types on each port of this run tee?
Answer by: Customer Support on Aug 20, 2025, 9:52 PM
For connections, Side 1 and Side 2 are 3/8 inch male JIS with a G 3/8 - 19 callout, and Side 3 is 3/8 inch female JIS with the same G 3/8 - 19 callout.
Question by: Marvin M on Dec 7, 2025, 3:21 PM
all three ports on this thing are 3/8 JIS? just want to make sure before i order
Answer by: Customer Support on Dec 9, 2025, 8:49 AM
Two of the ports are 3/8" male JIS and the third is 3/8" female JIS. So the run sides come in as male and the branch side is female. All three are the same 3/8" size, just different genders depending on which port you're working with.
Question by: Larry H on Aug 29, 2025, 1:08 PM
Will this tee work with standard JIC fittings, or do I need to get JIS specific stuff?
Answer by: Customer Support on Aug 31, 2025, 10:00 AM
This tee fitting requires JIS (Japanese Industrial Standard) connections on all three ports. It will not directly connect to JIC (Joint Industry Council) fittings. You'll need to use JIS-compatible components for a secure, leak-free hydraulic system.
