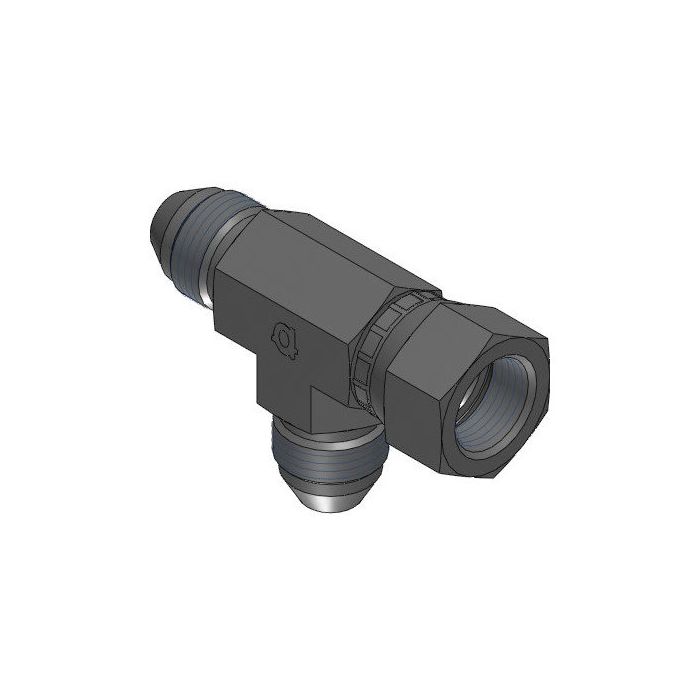

Female Jis Run Tee

Description & Features

This steel Adaptall fitting is a female JIS run tee, designed for hydraulic applications. It features three ports: two male JIS ports with 3/4" size and G 3/4 - 14 callout, and one female JIS port, also with 3/4" size and G 3/4 - 14 callout.

The Adaptall Ch1 width is 27mm, and the Adaptall Ch2 width is 36mm, with an Adaptall L1 length of 40mm and an Adaptall L2 length of 45mm. This Female Jis Run Tee provides a reliable connection point in hydraulic systems.

SKU: 9291-12-12-12

Supplier Part Number (MPN): 9291-12-12-12

Specifications

Brand adapt-all	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Size 3 3/4 in	Connection Type Female JIS	Connection Type 1 Female JIS	Connection Type 2 Female JIS	Connection Type 3 Female JIS	Dimension Standards JIS B 0202	Dimensions 84 mm L	Finish Zinc-Plated	Fitting Type Tee	Material Steel	Material Construction Carbon Steel	Series 9291 Series	Thread Size 3/4-14

Product Questions & Answers (1)

Question by: Duane K on Mar 4, 2026, 1:52 PM

What's the deal with the different widths on this tee fitting, the 27mm and 36mm?

Answer by: Customer Support on Mar 6, 2026, 7:37 AM

Adaptall provides those different widths, 27mm and 36mm, to give you proper wrenching surfaces to tighten the fitting securely without damaging it.
