90* Male X Female Jis

Description & Features

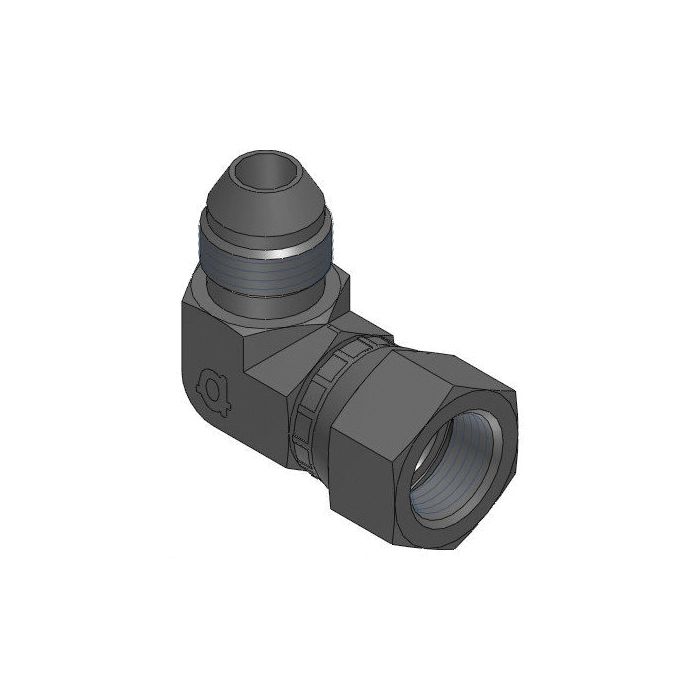

Configured as a 90° elbow in steel construction, this Adaptall 90° Male x Female JIS fitting connects two G 1/2 - 14 (1/2") JIS-threaded ports at a right angle, with one male and one female end. The elbow orientation is well suited for routing hydraulic lines in tight spaces where a straight fitting would not allow adequate clearance or directional change.

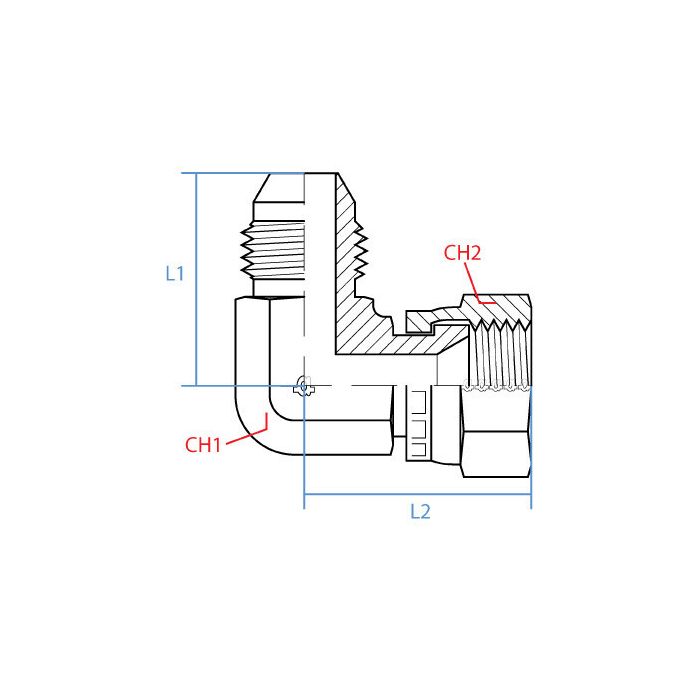

With a Ch1 wrench width of 22mm and Ch2 of 27mm, the fitting is designed for standard tooling. L1 measures 35mm and L2 40mm, keeping the overall profile compact. Steel construction provides the durability expected in hydraulic service environments.

SKU: 9292-08-08

Supplier Part Number (MPN): 9292-08-08

Alternate Part Numbers: C1HE31

Specifications

CH1 Width 22mm	CH2 Width 27mm	L1 Length 35mm	L2 Length 40mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jis	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jis	Alternate Part Numbers Alternate Part Number C1HE31	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9292-08-08	Product Weight 0.40 lbs
