90* Din X Male Metric Adj

Description & Features

Constructed from steel, this 90° elbow adapter connects a DIN tube fitting on one end to a male metric threaded port on the other, making it well suited for hydraulic circuits that require a direction change between mismatched connection types. Side 1 carries an M16 x 1.5 DIN tube interface (S08), while Side 2 presents an M14 x 1.5 male metric thread, an adjustable configuration that accommodates positional alignment during installation.

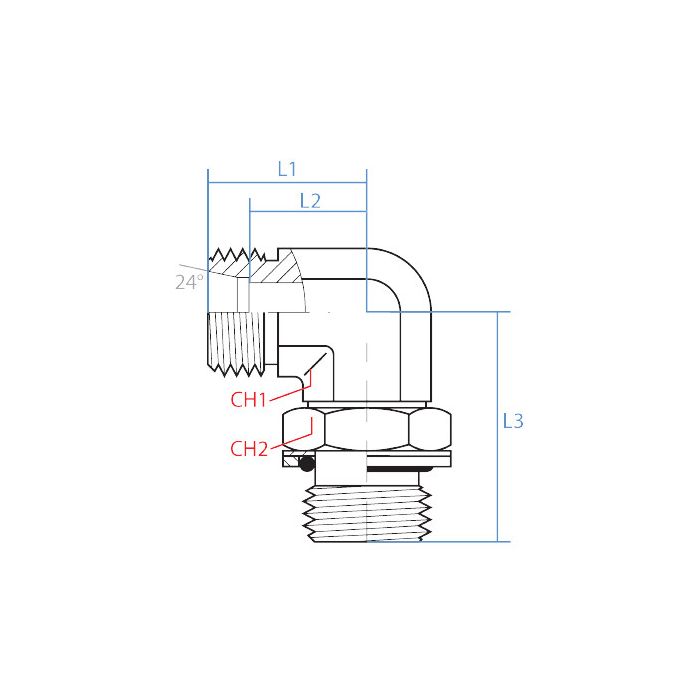

The 90* Din X Male Metric Adj is an Adaptall component, built to the dimensional standards that define the Adaptall interchangeable fitting system. Key dimensions include a Ch1 wrench width of 14mm, a Ch2 wrench width of 19mm, and an overall elbow geometry with L1, L2, and L3 lengths of 24mm, 17mm, and 32mm respectively. Steel construction provides the mechanical durability expected in industrial hydraulic assemblies.

SKU: 5069S-08-14

Supplier Part Number (MPN): 5069S-08-14

Specifications

CH1 Width 14mm	CH2 Width 19mm	L1 Length 24mm	L2 Length 17mm	L3 Length 32mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size S08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5069S-08-14	Product Weight 0.22 lbs

Product Questions & Answers (1)

Question by: Sherry W on May 11, 2025, 11:17 AM

got a line coming off a pump that needs to turn 90 degrees before hitting a metric threaded port, this thing work for that kind of setup?

Answer by: Customer Support on May 13, 2025, 9:23 AM

Yeah, that's exactly the kind of situation this fitting handles. One end picks up an M16 x 1.5 DIN tube connection, and the other end is an M14 x 1.5 male metric thread, so if your port matches that thread spec, you're in good shape. The 90-degree elbow geometry takes care of the direction change, and the adjustable side lets you rotate the fitting to line everything up before you lock it down. Steel construction holds up fine in standard hydraulic circuit work.
